Powder Metallurgy Self-Lubricating Tin Bronze Flanged Bushings for Reliable Pump Applications

Self-lubricating flanged bronze bushings are essential components in many pump systems where reliable shaft support, low friction, and reduced maintenance are required. A well-designed bushing helps maintain shaft alignment, control vibration, resist wear, and support stable operation over long service intervals. When the bushing also incorporates internal oil storage and an integrated flange, it can provide important advantages over conventional plain bushings that depend on frequent external lubrication.

This article explains the construction, working principle, materials, manufacturing process, performance characteristics, and application advantages of powder metallurgy self-lubricating tin bronze flanged bushings. It also examines why these components are suitable for industrial pumps, hydraulic equipment, automotive mechanisms, construction machinery, and other systems requiring dependable sliding support.

Manufactured through controlled powder compaction, high-temperature sintering, sizing, and oil impregnation, these bushings combine the strength of tin bronze with the lubrication capability of a porous sintered structure. The result is a near-net-shape bearing component capable of delivering consistent performance while reducing lubrication-related maintenance.

Powder Metallurgy Self-lubricating Tin Bronze Flanged Bushing

What Is a Self-Lubricating Tin Bronze Flanged Bushing?

A self-lubricating tin bronze flanged bushing is a plain bearing component produced from porous tin bronze powder. It normally consists of a cylindrical bearing section and an integral flange extending from one end. The cylindrical section supports and guides a rotating or oscillating shaft, while the flange provides axial positioning and can support thrust or locating loads.

During powder metallurgy production, bronze powder is compacted into a precisely shaped form and then sintered at a controlled temperature. Sintering bonds the powder particles while retaining a network of small interconnected pores. These pores are filled with lubricating oil after sizing and finishing. The stored oil is gradually released to the bearing surface during operation.

The bushing therefore provides two functions in one component. Its bronze matrix supplies mechanical strength, hardness, toughness, and resistance to seizure. Its porous structure acts as a distributed lubricant reservoir. The integrated flange also removes the need for a separate thrust washer or external locating feature in many assemblies.

Compared with a solid bronze bushing, an oil-impregnated sintered bushing can operate with little or no additional lubrication under suitable load, speed, temperature, and environmental conditions. Compared with a polymer bushing, tin bronze generally provides higher structural strength, better thermal conductivity, and improved resistance to deformation under load.

Why Tin Bronze Is Suitable for Sliding Bearings

Tin bronze is widely used in bearing applications because it offers a balanced combination of strength, wear resistance, toughness, and compatibility with steel shafts. Typical material grades for this type of product include compositions similar to CuSn6 and CuSn8, although the final formulation can be adjusted according to the application and production requirements.

The addition of tin strengthens the copper matrix and improves resistance to adhesive wear. This is particularly important when a shaft and bushing operate under boundary lubrication, intermittent lubrication, startup and shutdown conditions, or changing loads. The material is also less likely to seize than many harder or less compatible bearing materials when the mating shaft has been properly specified and finished.

Tin bronze has good thermal conductivity compared with many nonmetallic bearing materials. This allows frictional heat to move away from the sliding interface more effectively. In pump systems operating continuously, thermal management is important because excessive heat can accelerate oil loss, dimensional change, shaft damage, and bearing degradation.

The bronze matrix also provides good resistance to impact and vibration. Pumps may experience hydraulic pulsation, shaft misalignment, start-stop cycles, and transient loads. A tough bronze material can absorb these stresses more effectively than a brittle bearing material, helping maintain reliable contact between the shaft and bushing.

How the Self-Lubricating Mechanism Works

The self-lubricating function is created by the relationship between the porous bronze structure and the impregnated oil. During manufacturing, the powder compact is sintered without completely eliminating the spaces between particles. The resulting pores are distributed throughout the bearing wall and are designed to retain a controlled quantity of lubricant.

When the pump shaft begins to rotate, friction at the sliding interface generates a small amount of heat. This heat reduces the viscosity of the stored oil and encourages it to migrate from the internal pores toward the bearing surface. Shaft movement then spreads the oil into a thin film between the shaft and the bushing.

Once the operating cycle stops and the bearing cools, excess oil can migrate back into the porous structure. This process helps restore the internal lubricant reserve. Under suitable conditions, the release and absorption cycle can repeat throughout the service life of the component.

The mechanism can be summarized as follows:

• The porous bronze body stores lubricating oil.
• Operating heat encourages oil to move toward the sliding surface.
• Shaft rotation distributes the oil into a thin lubricating film.
• The oil film reduces direct metal-to-metal contact.
• After cooling, surplus oil is reabsorbed into the pores.
• The cycle continues during repeated operating conditions.

This does not mean that the bushing is suitable for every operating condition without additional lubrication. Extremely high loads, high speeds, contaminated environments, inadequate shaft finish, or temperatures outside the design range may require supplemental lubrication or a different bearing structure. Correct application engineering remains essential.

Key Advantages of the Flanged Design

Integrated Axial Positioning

The integral flange allows the bushing to be positioned accurately within a housing. It helps prevent axial movement caused by vibration, thrust, or repeated reciprocating motion. This can simplify assembly and improve positional consistency between the shaft, housing, and connected components.

Combined Radial and Axial Support

The cylindrical section primarily supports radial loads, while the flange can provide limited axial load support or serve as a locating shoulder. This combination can reduce the number of separate components in an assembly and make the bearing arrangement more compact.

Improved Assembly Efficiency

A flanged bushing can be installed with a defined stopping position. Operators do not need to measure insertion depth manually in the same way required for some plain cylindrical bushings. The flange also helps prevent accidental over-insertion during press fitting.

Reduced Risk of Axial Creep

In applications involving vibration or oscillation, an unflanged cylindrical bushing may gradually move inside the housing if the interference fit is not sufficient. The flange provides a mechanical reference that helps maintain the intended axial position.

Flexible Equipment Integration

Because the flange diameter, thickness, and position can be adjusted, the bushing can be designed for different housing structures and available installation space. Inner diameter, outer diameter, body length, and flange dimensions can all be developed according to drawings, samples, or application requirements.

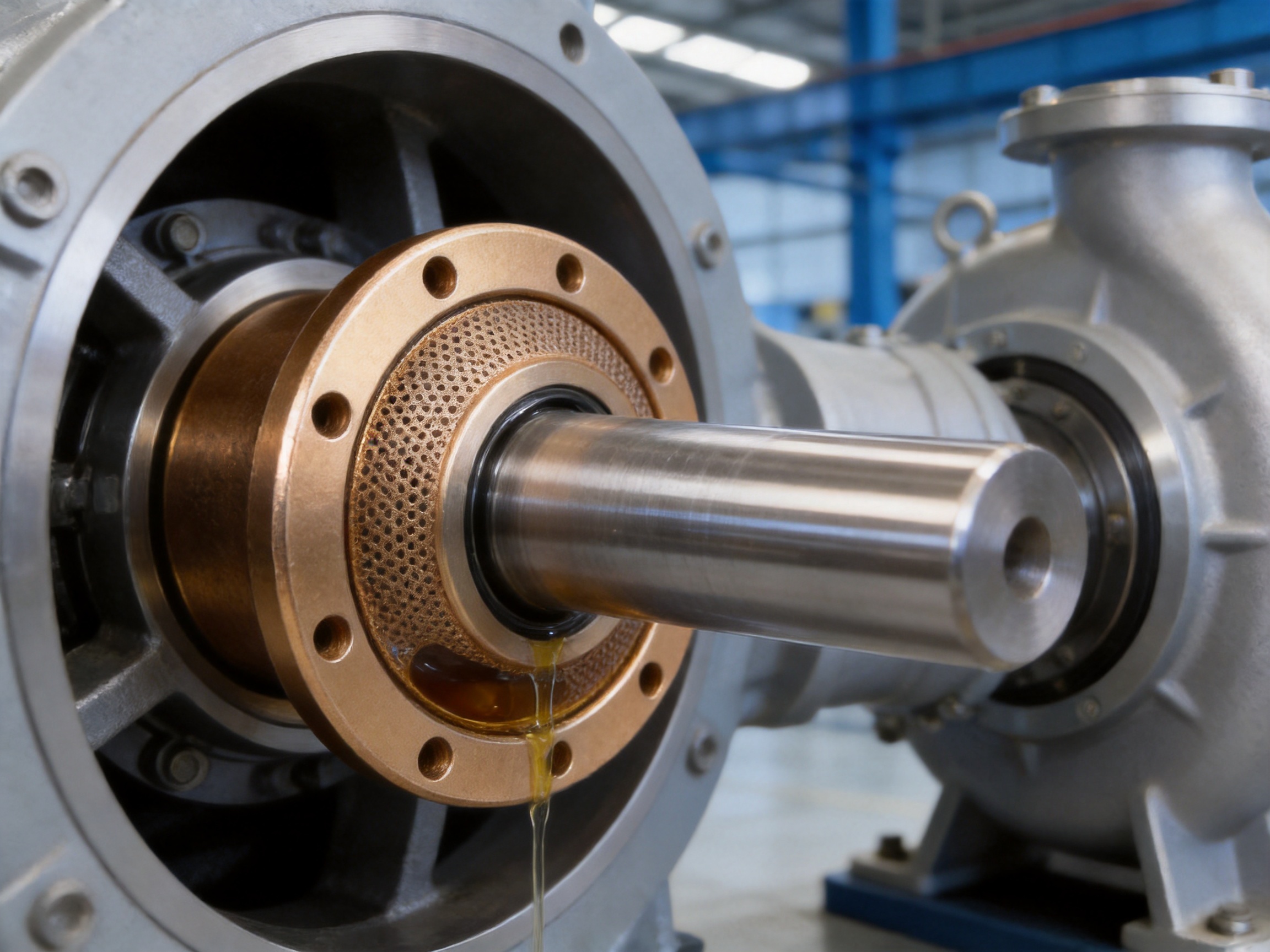

Performance Benefits in Pump Systems

Lower Friction During Shaft Rotation

The internal oil reservoir helps establish a lubricating film between the shaft and bearing surface. This reduces sliding resistance and supports smoother rotation. Lower friction can reduce drive power losses and help maintain more stable pump efficiency.

Reduced friction is especially valuable during startup. A pump shaft may experience a brief period before a conventional external lubrication system distributes sufficient lubricant. An oil-impregnated bushing can release lubricant from its porous structure as the interface warms and moves, reducing the severity of dry or boundary contact.

Reduced Wear on the Shaft and Housing

A bushing is intended to be a replaceable wear component that protects more expensive pump parts. By maintaining a lubricating film and using a compatible tin bronze composition, the bushing can help limit scoring and abrasive damage on the shaft. Its controlled dimensions also help prevent excessive clearance that could lead to vibration and leakage-related problems in the wider assembly.

Reduced Seizure Risk

Seizure occurs when sliding surfaces experience excessive friction, heat, and adhesion. It can be caused by insufficient lubrication, excessive load, contamination, poor alignment, or unsuitable surface conditions. Tin bronze is well suited to sliding against common steel shafts, and the continuous availability of internal oil further reduces the possibility of severe adhesive contact under appropriate conditions.

More Stable Continuous Operation

Industrial pumps may operate for extended periods with limited opportunities for maintenance. External grease systems can be affected by missed service intervals, lubricant contamination, incorrect application, or leakage. An oil-impregnated bushing stores lubricant within its own structure, reducing dependence on frequent manual servicing.

Lower Vibration and Noise Potential

Accurate alignment and a stable sliding film help reduce irregular contact between the shaft and bushing. This can support lower vibration and quieter operation, although total pump vibration also depends on impeller balance, shaft alignment, hydraulic conditions, housing rigidity, and installation quality.

Improved Resistance to Maintenance Errors

Routine lubrication systems require the correct lubricant quantity, timing, and application method. Too little lubricant can cause premature wear, while too much can increase drag or contaminate nearby components. A self-lubricating bushing reduces the number of routine lubrication decisions required during normal service.

Comparison with Conventional Bushing Solutions

Conventional solid bronze bushings can provide excellent strength and wear resistance, but they often depend on regular grease or oil application. In a clean and accessible assembly, this may be acceptable. In a sealed pump housing, remote installation, or equipment exposed to contamination, regular lubrication may be difficult.

Polymer bushings may offer low friction and corrosion resistance, but their load capacity, thermal stability, and dimensional behavior can be limited by temperature and pressure. They may also deform under sustained load or show different performance characteristics in fluid, chemical, or abrasive environments.

Metal-polymer composite bearings can perform well in certain applications, particularly where low friction and thin-wall construction are important. However, they may require different installation conditions and may not provide the same combination of structural strength and internal oil storage as a porous tin bronze bushing.

Performance Factor	Oil-Impregnated Tin Bronze Flanged Bushing	Conventional Solid Bronze Bushing	Typical Polymer Bushing
Lubrication Method	Internal oil reservoir with optional supplemental lubrication	External grease or oil generally required	Dry-running or externally lubricated, depending on material
Structural Strength	High for a sintered bearing material	High	Material dependent, often lower under heavy load
Maintenance Requirement	Low under suitable conditions	Regular lubrication may be necessary	Usually low, but replacement intervals vary
Thermal Conductivity	Good	Good	Generally lower
Axial Positioning	Integrated flange	Requires flanged design or additional locating feature	Depends on component design
Manufacturing Efficiency	Near-net-shape production can reduce machining	More machining may be required	Produced by molding, machining, or composite processing

Actual performance depends on design, material grade, shaft condition, load, speed, temperature, environment, and installation. The comparison is therefore a general guide rather than a substitute for application testing.

Material and Technical Characteristics

The typical material for this product is oil-impregnated tin bronze with a controlled porous structure. Common material options include compositions comparable to CuSn6 and CuSn8. The oil content is commonly specified at 18 percent or higher, while the typical density range is approximately 6.2 to 6.8 grams per cubic centimeter.

Oil content and density are important because they influence the balance between mechanical strength, porosity, oil storage, and lubricant release. Higher density generally supports greater strength, while greater porosity can increase oil capacity. The final specification should be selected according to the load and speed requirements of the application.

Reference dimensional capabilities include inner diameters from approximately 3 millimeters to 100 millimeters, outer diameters from approximately 6 millimeters to 120 millimeters, and body lengths from approximately 5 millimeters to 100 millimeters. The flange diameter can typically be designed to extend approximately 2 to 10 millimeters beyond the outer diameter, subject to the drawing and assembly requirements.

Dimensional accuracy can reach IT7 to IT8 for suitable components and production conditions. Sizing after sintering is used to improve bore accuracy, roundness, and dimensional consistency. Final tolerance selection should consider the shaft diameter, housing fit, operating temperature, clearance requirements, and expected thermal expansion.

Parameter	Reference Value
Material	Tin bronze, including CuSn6 or CuSn8-type grades
Oil Content	18 percent or higher
Typical Density	6.2–6.8 g/cm³
Inner Diameter Range	Approximately 3–100 mm
Outer Diameter Range	Approximately 6–120 mm
Body Length Range	Approximately 5–100 mm
Flange Diameter	Typically 2–10 mm greater than the body outer diameter
Operating Temperature Reference	Approximately -40°C to +220°C
Reference Ultimate PV Value	Approximately 2.5 MPa·m/s without additional oil lubrication
Dimensional Accuracy	Up to IT7–IT8 for appropriate designs and processes

PV value represents the relationship between bearing pressure and sliding velocity. It is an important reference for evaluating plain bearing suitability. A product with a stated PV value must still be evaluated under the actual duty cycle, because intermittent operation, oscillation, edge loading, temperature, lubrication condition, and environmental contamination can significantly affect performance.

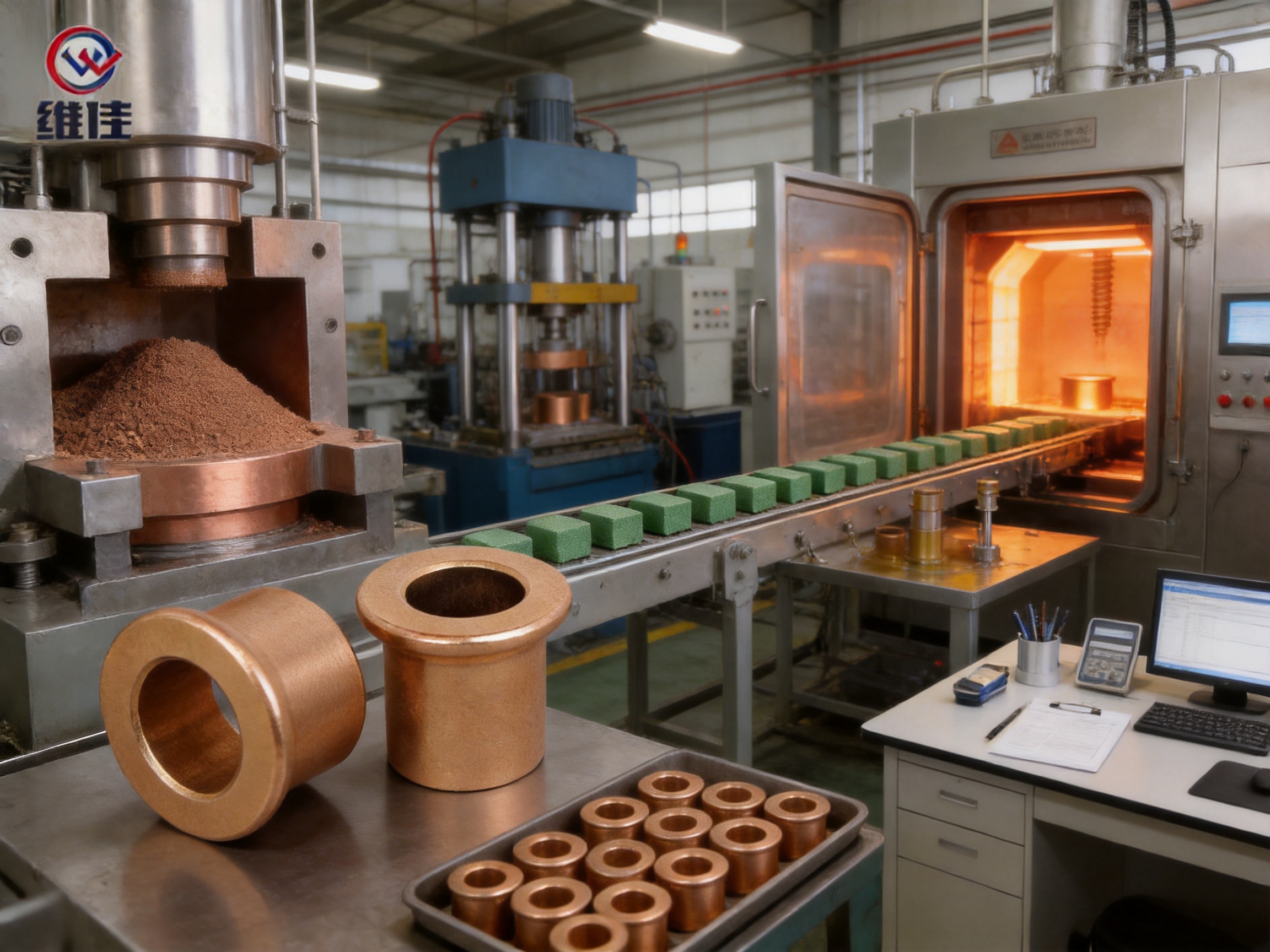

Advanced Powder Metallurgy Manufacturing Process

Powder Selection and Material Preparation

Production begins with the selection and preparation of bronze powders that meet the required chemical composition, particle characteristics, flow properties, and compressibility. Consistent powder quality is important because it affects filling behavior, green density, pore distribution, and final mechanical properties.

Depending on the design, alloy powders and processing additives may be blended to achieve the required tin content, lubrication behavior, strength, and dimensional response during sintering. The blending process must be controlled so that the composition remains uniform throughout the production batch.

Precision Powder Compaction

Prepared powder is placed into a precision die and compacted under controlled pressure. The die defines the bore, outside diameter, body length, flange profile, and other geometric features. The objective is to form a green compact with sufficient handling strength and an evenly distributed density profile.

Compaction conditions must be selected carefully for flanged parts. Sudden changes in section thickness, the transition between the body and flange, and the shape of the bore can influence powder flow and density distribution. Proper tooling design helps reduce defects such as cracking, lamination, distortion, and uneven shrinkage.

Near-net-shape compaction is one of the main advantages of powder metallurgy. It allows many features to be formed directly in the die, reducing the amount of machining required after sintering. This can improve material utilization and lower the cost of high-volume production.

Controlled High-Temperature Sintering

The compacted part is heated in a controlled-atmosphere sintering furnace. During sintering, particles bond together through diffusion, increasing the strength and integrity of the component while retaining the designed porous network.

Temperature profile, atmosphere, heating rate, holding time, and cooling rate all influence final quality. A carefully controlled atmosphere protects the bronze from excessive oxidation and supports consistent metallurgical bonding. Furnace control also helps maintain repeatable dimensional behavior across production batches.

For self-lubricating bearings, sintering must achieve a careful balance. If the structure is too dense, it may not retain enough oil. If the structure is too porous or weak, the component may not provide adequate load capacity or dimensional stability. Professional process control is therefore essential to achieve the required density, porosity, and strength combination.

Sizing and Dimensional Calibration

After sintering, the component may undergo sizing. In this operation, the bushing is passed through a sizing tool or placed into a calibration die to improve dimensional accuracy. Sizing can correct small dimensional variations, improve bore roundness, and provide the specified interference or clearance relationship between the bushing and its mating parts.

For pump applications, bore accuracy is especially important. Excessive clearance can increase vibration and wear, while insufficient clearance can increase friction, operating temperature, and the risk of seizure. The final dimensions should therefore be matched to the shaft diameter, shaft finish, operating temperature, and expected load.

Oil Impregnation

Once the sintered structure has been sized and inspected, the bushing is impregnated with lubricating oil. Vacuum or pressure-assisted methods can be used to remove air from the pores and introduce oil into the internal structure. The impregnation process is controlled to achieve the specified oil content and consistent distribution.

Oil selection depends on the operating temperature, speed, load, environmental conditions, and compatibility with nearby materials. Standard industrial oils may be suitable for general applications, while specialized formulations may be considered for elevated temperatures, low-temperature startup, or particular chemical environments.

Optional Surface Treatments

Natural sintered bronze may be suitable for many applications. However, additional surface treatments can be considered when greater corrosion resistance, appearance, or wear performance is required. Available options may include phosphating or tin plating, subject to the design and operating environment.

Surface treatment selection must consider whether the treatment could affect bore dimensions, oil release, shaft compatibility, or chemical resistance. Any coating or treatment should be specified with its thickness, coverage, adhesion, and post-treatment dimensional requirements.

Inspection and Quality Control

Quality control can include raw material verification, density testing, dimensional inspection, visual examination, oil content measurement, hardness testing, and functional evaluation. Depending on the component and customer requirements, inspection reports may be supplied for material and dimensional characteristics.

ISO9001:2015 quality management practices support controlled documentation, process traceability, corrective action, and continuous improvement. For automotive-related applications, IATF 16949:2016 certification provides an additional framework for process control and risk management when the product is supplied under the relevant quality system.

Manufacturing Strengths of Jiande Welfine Technology Co., Ltd.

Jiande Welfine Technology Co., Ltd. was established in 2001 and focuses on powder metallurgy sintering and related precision machining. With more than two decades of industry experience, the company develops and manufactures powder metallurgy bushings, self-lubricating bearings, structural parts, and other precision components for industrial customers.

The company operates a modern production base covering approximately 13,039 square meters. Its manufacturing resources include high-efficiency powder presses, high-temperature sintering furnaces, precision forming equipment, and inspection facilities. These resources support the production of repeatable components in both standard and customized configurations.

More than 150 skilled employees contribute to production, engineering, quality control, and customer support. Technical development can be based on customer drawings, physical samples, or application specifications. This allows the manufacturing team to review the complete bearing arrangement rather than treating the bushing as an isolated part.

OEM and ODM services are available for customers requiring customized inner diameters, outer diameters, body lengths, flange profiles, material grades, tolerances, oil types, surface treatments, or packaging. Small-batch trial production can also be supported for new product development and design validation.

The near-net-shape production method can reduce machining allowance and material waste. For suitable designs, manufacturing cost may be reduced by more than 30 percent compared with traditionally machined copper alloy bushings. The actual saving depends on component geometry, annual volume, tolerances, secondary operations, and inspection requirements.

Standard components may be available from stock, while custom products can commonly be delivered within approximately 7 to 15 days after technical confirmation and order acceptance. Delivery time depends on tooling, material availability, production quantity, inspection requirements, and shipping arrangements.

Customization Options for Pump Manufacturers

Dimensional Customization

Pump manufacturers can specify the shaft bore, housing diameter, body length, flange diameter, flange thickness, corner radii, oil grooves if required, and other installation features. A detailed drawing is preferred because it defines the functional relationship between the bushing and the pump assembly.

Material Customization

CuSn6-type and CuSn8-type tin bronze materials may be selected according to load, speed, hardness, and wear requirements. The material composition can be reviewed together with the mating shaft material and surface hardness to reduce the risk of compatibility problems.

Oil Selection

Different lubricating oils may be considered for different operating temperatures and speeds. The oil should be compatible with the pumped medium, seals, shaft coating, and nearby elastomers. If the bushing is exposed to water, chemicals, food-processing environments, or vacuum conditions, the lubricant specification should be discussed before production.

Surface Protection

Phosphating or tin plating may be considered when additional surface protection is required. Surface treatment can be particularly useful during storage and transport, but the finished treatment must not interfere with the intended fit or lubrication performance.

Packaging and Identification

Individual moisture-resistant packaging helps protect oil-impregnated bushings from oxidation, contamination, and transport damage. Batch identification can support traceability and simplify incoming inspection. Packaging labels may include the part number, material, quantity, production batch, and inspection status.

Applications Beyond Pump Equipment

Automotive Mechanisms

Self-lubricating flanged bushings can be used in steering systems, brake pedal assemblies, seat adjustment mechanisms, hinges, and other automotive linkage components. Their compact form, low maintenance requirement, and ability to support oscillating motion make them suitable for mechanisms where frequent grease application is undesirable.

Construction Machinery

Construction equipment may use bronze bushings in linkage points, hydraulic pump assemblies, valve groups, control mechanisms, and selected pin joints. In excavators and loaders, the design must be matched carefully to the load, oscillation angle, contamination level, and available lubrication system. For heavy external pin joints, a specialized high-load bushing may be more appropriate than a standard oil-impregnated design.

Textile and Printing Machinery

Textile machines and printing equipment often contain numerous rotating shafts, rollers, guides, and transmission components. Low maintenance is valuable because excessive manual lubrication can introduce contamination to fabrics, paper, or precision mechanisms. Stable dimensions and smooth movement can also support consistent machine output.

Office and Precision Equipment

Compact sintered bushings can be used in office equipment, actuators, small motors, adjustment mechanisms, and transmission systems. Custom dimensions allow engineers to integrate the bearing into space-limited designs.

Motors, Reducers, and Conveyors

General machinery such as motors, reducers, conveyors, and automated handling equipment may use self-lubricating bushings in auxiliary shafts, adjustment mechanisms, tensioning devices, and low-to-moderate speed supports. The correct design depends on radial load, shaft speed, duty cycle, and the level of contamination present in the operating environment.

Installation Recommendations

Correct installation is necessary to obtain the expected performance from any plain bearing. Before installation, the bushing, shaft, and housing should be checked for burrs, dirt, corrosion, dents, and dimensional defects. The shaft should have an appropriate surface finish and hardness, and its edges should be chamfered where necessary to prevent damage to the bushing bore.

The housing bore should be clean, round, and within the specified tolerance. An incorrect housing interference fit may distort the bushing and reduce the internal clearance. Excessive press force can damage the flange or deform the bearing wall, particularly if the component is not properly supported during assembly.

Installation should normally be performed with a suitable mandrel or pressing tool that applies force evenly to the bushing. Impact installation should be avoided unless the design specifically allows it. The flange should be supported appropriately when axial force is applied.

After installation, the shaft should rotate or oscillate smoothly without binding. The assembly should be checked for abnormal noise, excessive resistance, uneven clearance, and axial movement. If an external lubricant is added, it should be chemically compatible with the impregnated oil and should not contain contaminants that could damage the sliding surfaces.

Service Life and Operating Conditions

The service life of a self-lubricating bushing is influenced by several interacting factors. These include bearing pressure, sliding speed, PV value, temperature, shaft surface condition, alignment, duty cycle, vibration, contamination, and the nature of the applied load.

Continuous rotation and oscillating motion produce different wear patterns. In continuous rotation, the lubricant can distribute around the bearing circumference. In oscillating applications with a small angle of movement, the shaft may repeatedly contact the same area, requiring careful consideration of load, oil release, and surface condition.

Temperature affects both the bronze structure and the impregnated oil. The general reference operating range is approximately -40°C to +220°C, but the usable range depends on the selected lubricant, load, speed, housing design, and thermal conditions. Operation near the upper limit may reduce oil viscosity and increase oil loss, while low temperatures may increase starting torque.

Contamination should be controlled whenever possible. Dust, metal particles, abrasive materials, and corrosive fluids can accelerate wear. Seals, shields, protective covers, and suitable housing designs can help protect the bushing. In wet or chemically aggressive applications, material and surface treatment selection should be reviewed with the manufacturer.

Although self-lubricating bushings require less maintenance, periodic inspection is still recommended for critical equipment. Operators should monitor noise, vibration, temperature, shaft play, leakage, and changes in power consumption. Early detection of abnormal conditions can prevent damage to the shaft and surrounding components.

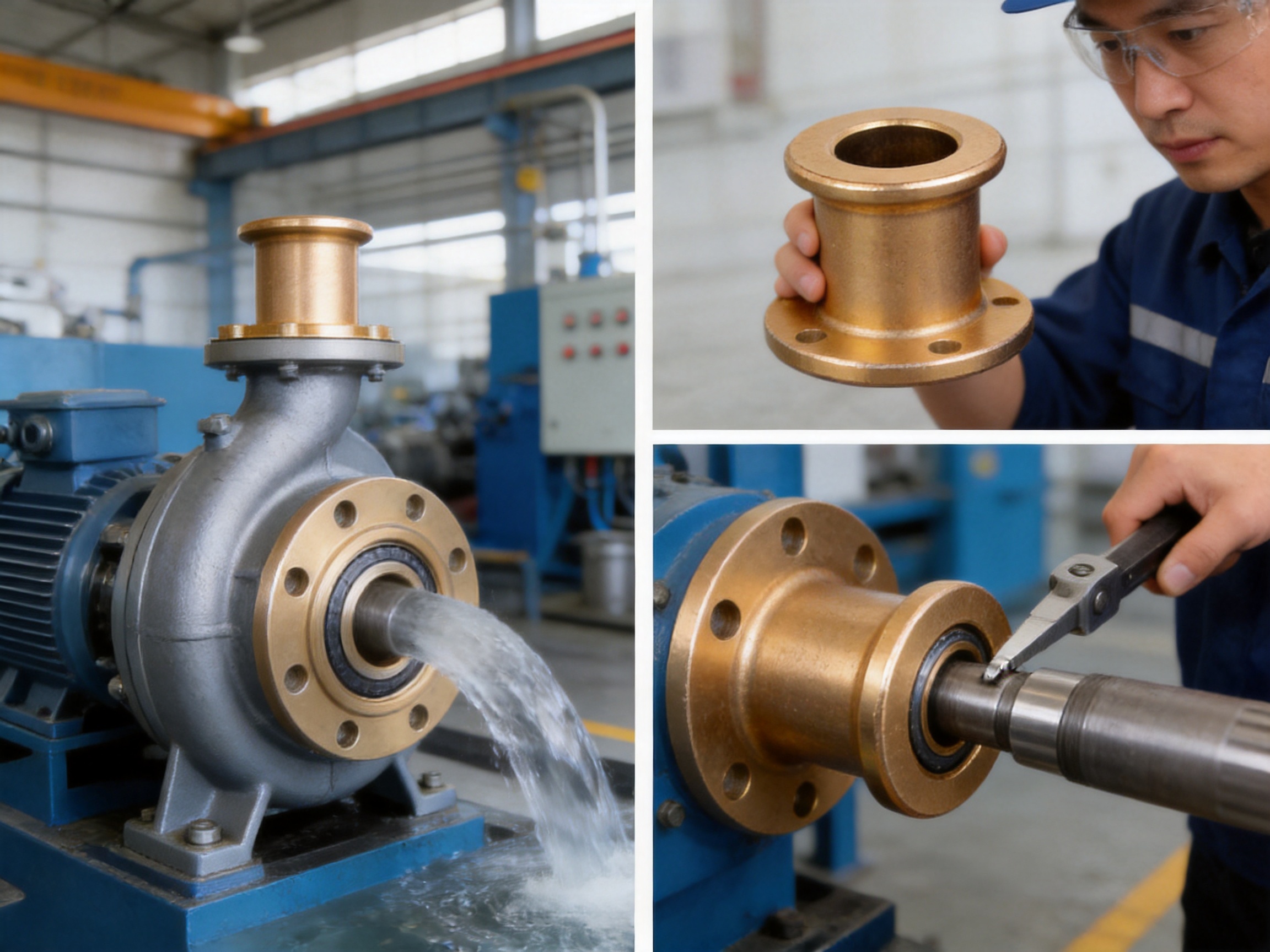

How This Product Improves Pump Reliability

Pump reliability depends on the performance of the complete system, but the bushing has a direct influence on shaft support and rotational stability. A properly selected flanged bushing maintains the shaft position, controls radial clearance, and helps manage friction at the bearing interface.

The self-lubricating structure reduces dependence on an external lubrication schedule. This is valuable in pumps installed in remote locations, enclosed systems, water treatment facilities, agricultural irrigation equipment, chemical plants, and industrial circulation systems. Fewer lubrication tasks can reduce maintenance labor and lower the risk of failure caused by missed service intervals.

The bronze material provides a durable sliding surface, while the integrated flange supports accurate installation. Together, these features can reduce uneven wear, improve alignment, and help extend the service life of the bushing and mating shaft.

Lower friction can also contribute to lower operating temperature and reduced vibration. These effects may improve the stability of the pump assembly, although they should not be considered a replacement for correct shaft alignment, impeller balancing, seal maintenance, and hydraulic system design.

Recommended Selection Process for Pump Manufacturers

Before selecting a bushing, the pump manufacturer should define the shaft diameter, housing diameter, radial load, axial load, rotational speed, oscillation angle, operating temperature, duty cycle, and environmental conditions. The type of pumped medium should also be considered, particularly if the bushing may be exposed to water, chemicals, oils, solvents, or abrasive particles.

The shaft material and surface finish are equally important. A compatible steel shaft with suitable hardness and finish will generally provide better wear performance than a rough, soft, or improperly aligned shaft. The bushing supplier should receive complete information about the mating components so that clearance and material recommendations are appropriate.

Engineers should also determine whether the bushing will run with internal lubrication only or whether additional oil or grease will be available. If supplemental lubrication is used, lubricant compatibility should be verified. The flange must be checked against the housing shoulder, adjacent components, axial movement, and available installation space.

For new equipment, prototype testing is recommended before full-scale production. Testing can include running temperature, startup torque, noise, vibration, wear measurement, dimensional stability, and performance under representative load and speed conditions. Testing is particularly important when the bushing will operate near the reference PV limit or temperature range.

Packaging, Delivery, and Technical Support

Oil-impregnated bushings should be packaged to prevent moisture, dust, and mechanical damage from affecting the product during storage and transport. Independent moisture-resistant packaging helps protect the sintered bronze surface and preserve product cleanliness.

Products should be stored in a clean, dry environment away from corrosive chemicals and excessive heat. Packaging should remain sealed until the components are ready for inspection or installation. If long-term storage is expected, the customer should confirm the recommended storage period and any re-oiling requirements.

Jiande Welfine Technology Co., Ltd. provides technical support for product selection, installation, and maintenance guidance. Customers can submit drawings, samples, dimensional requirements, or application data for engineering review. This approach helps identify potential issues with clearance, flange geometry, material selection, oil type, and production feasibility before mass production begins.

For custom projects, the development process may include drawing review, material confirmation, prototype or small-batch production, dimensional inspection, sample approval, and subsequent batch manufacturing. This structured process helps align the final product with the pump manufacturer’s assembly and quality requirements.

Frequently Asked Questions

What makes a flanged bushing different from a straight bushing?

A flanged bushing has an integral radial extension at one end of the cylindrical body. The flange provides a locating shoulder, helps control axial movement, and may support limited axial loads. A straight bushing does not include this integrated feature and may require a separate locating method.

Does a self-lubricating bushing require additional grease?

Under suitable operating conditions, the internal oil impregnation can provide the required lubrication without routine external grease. However, additional lubrication may be considered for high-load, high-speed, severe-temperature, or special-duty applications. The added lubricant must be compatible with the impregnated oil and the operating environment.

What materials are available for these bushings?

Tin bronze grades similar to CuSn6 and CuSn8 are typical choices. The final material should be selected according to load, speed, temperature, shaft material, wear requirements, and environmental exposure. Other material solutions may be evaluated when the application requires a different balance of strength, porosity, or corrosion resistance.

What is the typical temperature range?

The reference temperature range is approximately -40°C to +220°C. Actual performance depends on the oil formulation, operating pressure, sliding speed, duty cycle, heat dissipation, housing design, and surrounding environment. Applications near the temperature limits should be validated through engineering review or testing.

Can the bushing be customized according to a drawing?

Yes. Inner diameter, outer diameter, body length, flange diameter, flange thickness, tolerances, material, oil content, surface treatment, and packaging can be considered for customization. A technical drawing or physical sample provides the most reliable basis for development.

What dimensional accuracy can be achieved?

For suitable designs and controlled production conditions, dimensional accuracy can reach IT7 to IT8. Final tolerance depends on part geometry, powder characteristics, compaction, sintering behavior, sizing, and any secondary machining. The required fit should always be defined by the shaft and housing specifications.

How does powder metallurgy reduce production cost?

Powder metallurgy forms many features close to their final shape, reducing material waste and machining allowance. This can lower production cost compared with manufacturing a similar bushing entirely from solid copper alloy bar. The cost benefit is usually greatest for repeat orders and geometries suitable for efficient compaction.

Can these bushings be used in water pumps?

They may be suitable for water pumps when the material, impregnated oil, seals, clearance, and operating conditions are properly selected. Direct exposure to water can affect lubrication and corrosion behavior, so the specific pump environment should be reviewed before approval.

Are these bushings suitable for chemical pumps?

They can be considered for selected chemical pump applications, but compatibility must be verified carefully. The pumped chemical, temperature, concentration, shaft material, surface treatment, and lubricant formulation all influence suitability. A specialized material or protective design may be required for aggressive media.

What quality certifications are available?

Jiande Welfine Technology Co., Ltd. operates under ISO9001:2015 quality management practices and has passed IATF 16949:2016 certification. Material and dimensional inspection reports can be provided according to batch and customer requirements.

What is the typical delivery time for customized parts?

Custom parts may commonly be delivered within 7 to 15 days after technical details, tooling requirements, and order conditions are confirmed. The exact schedule depends on product complexity, quantity, tooling, raw material availability, inspection requirements, and shipping arrangements.

What warranty and after-sales support are provided?

A 12-month warranty is available, with free replacement for damage not caused by improper handling, incorrect installation, abnormal operating conditions, or other human-related factors. Technical support is also available for selection, installation, and maintenance guidance.

Conclusion

Powder metallurgy self-lubricating tin bronze flanged bushings provide an effective solution for pump manufacturers seeking dependable shaft support, low maintenance, and efficient production. Their porous bronze structure stores and releases lubricant during operation, while the tin bronze matrix provides strength, toughness, wear resistance, and good compatibility with steel shafts.

The integrated flange improves axial positioning, simplifies assembly, and supports compact equipment designs. Compared with conventional solid bronze bushings, these components can reduce reliance on external lubrication and lower machining requirements. Compared with many polymer alternatives, they offer a stronger metallic structure and better thermal conductivity for demanding industrial conditions.

Product performance depends on correct specification and installation. Load, speed, PV value, temperature, shaft finish, housing fit, alignment, contamination, and lubricant compatibility must all be considered. When these factors are properly controlled, the bushing can help reduce friction, vibration, heat, maintenance frequency, and premature wear.

With powder metallurgy expertise dating back to 2001, a 13,039-square-meter production base, advanced presses and sintering equipment, precision forming capability, OEM and ODM support, and ISO-based quality systems, Jiande Welfine Technology Co., Ltd. is equipped to develop customized sintered metal components for pump manufacturers and industrial equipment producers. From standard bushings to drawing-based flanged bearing solutions, controlled manufacturing and technical collaboration help provide stable products for long-term operation.

References

1. ASM International, Powder Metallurgy: Processing and Materials Engineering.

2. German Institute for Standardization, Plain Bearings—Terms, Definitions, Classification, and General Guidance.

3. International Organization for Standardization, ISO 9001:2015 Quality Management Systems—Requirements.

4. International Automotive Task Force, IATF 16949:2016 Quality Management System Requirements for Automotive Production and Relevant Service Parts Organizations.

5. ASTM International, Standard Practices and Test Methods for Sintered Metal Materials and Oil-Impregnated Bearings.

6. Technical information supplied for powder metallurgy self-lubricating tin bronze flanged bushings, including material, process, dimensional, and application data.

7. Product engineering guidance supplied by Jiande Welfine Technology Co., Ltd. for sintered bushings, self-lubricating bearings, and customized powder metallurgy components.

Product: Powder Metallurgy Self-lubricating Tin Bronze Flanged Bushing
