Advanced Soft Magnetic Composite Stator Core for High-Efficiency Air Conditioner Motors

Modern air conditioner motors are being pushed toward higher efficiency, lower acoustic noise, smaller package size, and longer service life. In this environment, the stator core is no longer a simple passive magnetic component. It has become a decisive part of motor performance, influencing torque density, electromagnetic loss, thermal behavior, vibration, assembly accuracy, and the final energy consumption of the entire air conditioning system. The SMC stator core made from SOMALOY 700HR-3P is engineered for this new generation of high-efficiency motor platforms, especially axial-flux and compact inverter motor designs used in household air conditioners, commercial HVAC equipment, fresh air systems, and smart appliance drive units.

This ring-shaped toothed stator core combines soft magnetic composite material technology with powder metallurgy forming, controlled sintering, precision post-processing, and strict dimensional inspection. Compared with traditional laminated silicon steel stator cores, this component provides a more flexible three-dimensional magnetic circuit, reduced eddy current loss at higher frequencies, lighter structure, and improved freedom for motor design engineers. For applications that demand high energy efficiency, quiet operation, and reliable performance under long operating hours, the product offers a practical route to upgrading the magnetic core architecture of air conditioner motors.

Jiande Welfine Technology Co., Ltd. manufactures this product through a mature powder metallurgy platform supported by more than two decades of production experience. The company integrates material preparation, compaction, sintering, precision forming, inspection, and customized OEM/ODM service into one manufacturing chain. With ISO 9001:2015 and IATF 16949:2016 quality system certifications, advanced equipment, skilled technicians, and a 13,039-square-meter production base, the company is positioned to provide stable batch supply for demanding motor manufacturers. The result is not only a magnetic component, but a high-consistency engineered solution for energy-saving motor systems.

SMC Stator Core (SOMALOY 700HR-3P)

Product Overview: A High-Performance SMC Stator Core for Motor Efficiency

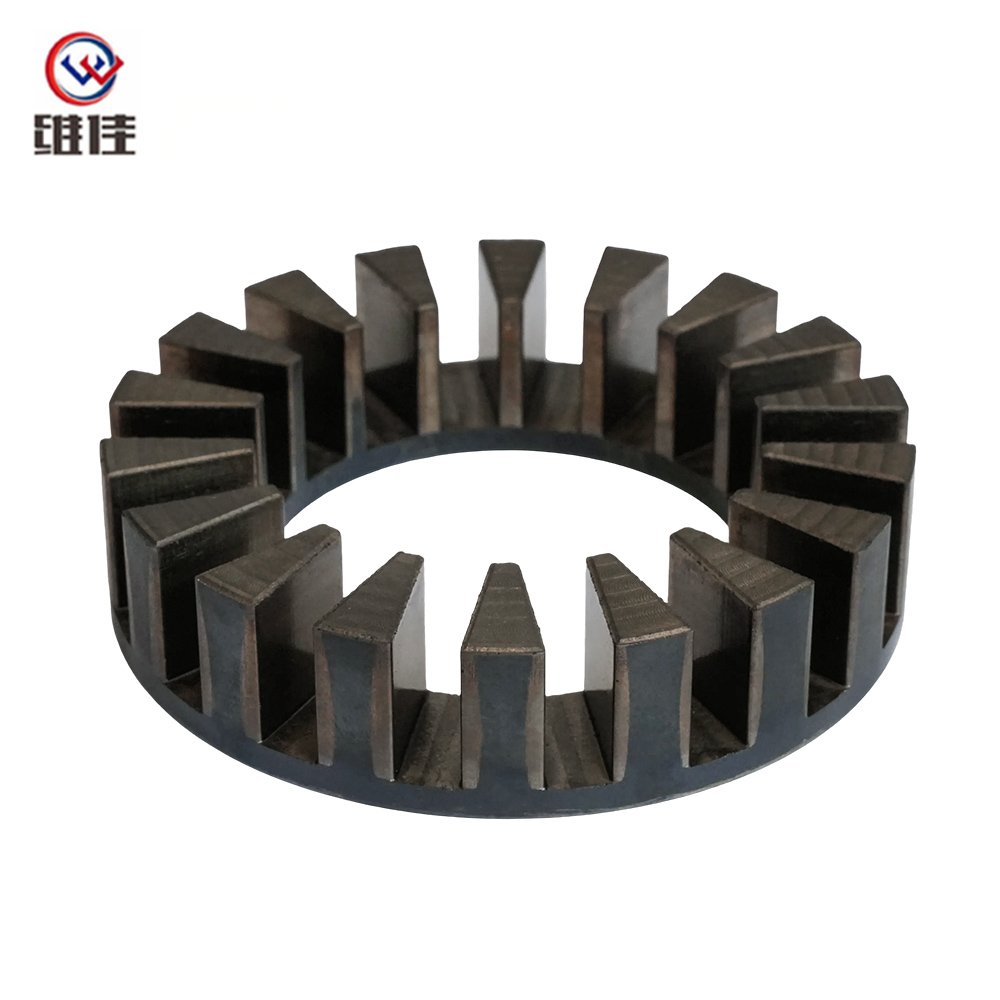

The product is an SMC stator core manufactured from SOMALOY 700HR-3P, a high-performance soft magnetic composite material. The component is formed as a ring-shaped toothed stator core with 18 teeth, designed for use in axial-flux or high-efficiency air conditioner motors. Its structure supports compact winding arrangements and efficient magnetic flux paths, helping motor designers achieve improved energy conversion and reduced operating losses.

The model referenced in the technical data is L1C10000557A-001A. Its key dimensions include an outer diameter of 100.0 ±0.1 mm, an inner diameter of 65.0 ±0.1 mm, and a thickness of 10.0 ±0.05 mm. Tooth profile tolerance is controlled to ±0.03 mm, while flatness is maintained at no more than 0.05 mm and parallelism at no more than 0.03 mm. These tolerance values are important because motor assembly quality depends heavily on the accuracy of the stator core. Any deviation in tooth geometry, flatness, or concentricity can lead to winding difficulty, uneven air gaps, noise, vibration, and efficiency loss.

The material and process combination is the central value of the product. SOMALOY 700HR-3P is composed of insulated iron powder particles. Each particle is electrically insulated from neighboring particles, allowing the material to suppress eddy currents more effectively than conventional bulk metallic materials. While laminated silicon steel reduces eddy currents mainly in a two-dimensional plane through stacked sheets, SMC material provides isotropic magnetic behavior and supports three-dimensional flux paths. This allows more design freedom in axial-flux motors, compact motors, and special high-efficiency motor structures where magnetic flux does not travel only in the plane of steel laminations.

For air conditioner motors, this advantage is particularly valuable. Inverter air conditioners operate over variable speeds and may encounter higher electrical frequencies than traditional fixed-speed motors. At higher frequencies, eddy current losses become increasingly important. A core material with high electrical resistivity and controlled magnetic performance can reduce heat generation, improve system efficiency, and support quieter operation. The SMC stator core therefore contributes directly to lower energy consumption and better end-user comfort.

Why the Stator Core Matters in Air Conditioner Motors

In an electric motor, the stator core forms the magnetic circuit that interacts with the rotor to generate torque. While windings, permanent magnets, bearings, control electronics, and thermal design all influence motor performance, the stator core is one of the most fundamental elements. Its magnetic permeability affects how efficiently magnetic flux is established. Its losses determine how much input energy is converted into heat rather than useful mechanical output. Its shape determines how effectively copper windings can be placed. Its dimensional stability influences air gap uniformity, vibration, and acoustic behavior.

Air conditioner motors often operate for long periods, sometimes continuously during peak seasonal use. In household inverter air conditioners, motors must deliver efficient performance across a wide speed range. In commercial central air conditioning systems, fan motors may run for extended hours under stable but demanding load conditions. In fresh air systems and purification equipment, motors must often operate quietly at low speeds while still providing enough torque. These operating environments create a strong need for stator cores that combine magnetic efficiency, thermal reliability, dimensional precision, and long-term stability.

Traditional laminated silicon steel cores have been widely used for decades and remain effective in many radial-flux motor applications. However, they also have limitations. The lamination process can restrict three-dimensional magnetic design. Complex teeth or axial-flux structures may require complicated stacking, stamping, welding, bonding, or machining. Material utilization may be reduced due to stamping scrap. At higher frequencies, even laminated structures may experience higher core loss. For advanced air conditioner motor designs, these limitations can become barriers to further improvement.

The SMC stator core offers a different pathway. Through powder metallurgy compaction, the toothed ring structure can be formed directly with complex geometry. Because the material consists of insulated particles, electrical resistivity is high, reducing eddy current formation. Because the material can carry flux in three dimensions, motor designers can use magnetic paths that are difficult or inefficient with sheet laminations. Because the part can be produced near-net shape, secondary machining can be reduced, improving production efficiency and consistency.

Core Material: SOMALOY 700HR-3P Soft Magnetic Composite

SOMALOY 700HR-3P is a high-performance soft magnetic composite material designed for powder metallurgy processing. In this product, it provides the foundation for the stator core’s magnetic and mechanical behavior. The material combines ferromagnetic iron powder with an insulating coating system, allowing the core to conduct magnetic flux while limiting electrical current loops within the body of the material. This combination is essential for reducing eddy current loss, especially in high-frequency or variable-frequency motor operation.

The specified density is at least 6.5 g/cm³. A controlled and sufficient density helps the component achieve stable magnetic permeability, mechanical strength, and dimensional integrity. Density uniformity is also important. Uneven density could produce local differences in magnetic performance or mechanical strength, which may affect motor consistency. The powder metallurgy process must therefore carefully control powder filling, pressing pressure, die design, lubrication, and sintering conditions.

Electrical resistivity is specified at no less than 80 μΩ·cm. High resistivity is one of the most important reasons for choosing an SMC material. In a magnetic core exposed to alternating magnetic fields, induced currents can circulate within conductive material. These eddy currents generate heat and represent energy loss. By increasing resistivity and interrupting current paths between powder particles, the SMC structure reduces this effect. The benefit becomes more significant as operating frequency increases.

The material’s hardness is specified at no less than 180 HV, and bending strength is specified at no less than 400 MPa. These values support practical handling, assembly, winding, and long-term operation. A stator core must survive manufacturing operations and mechanical stresses without cracking or deformation. It must maintain tooth accuracy and flatness during assembly. It must also tolerate vibration and thermal cycling in service.

The coefficient of thermal expansion is specified as 12×10⁻⁶ /℃ from 20℃ to 100℃. Thermal expansion compatibility matters in motors because the stator core interacts with windings, insulation, housings, and sometimes potting or encapsulation materials. A predictable expansion profile helps maintain assembly stability and reduces stress during temperature changes.

Technical Specifications

The following table summarizes the principal technical parameters of the SMC stator core. These values represent the product’s combination of material strength, magnetic performance, dimensional accuracy, and reliability under air conditioner motor operating conditions.

Category	Parameter	Specification
Material	Material Grade	SOMALOY 700HR-3P
Material	Density	≥6.5 g/cm³
Material	Electrical Resistivity	≥80 μΩ·cm
Material	Hardness	≥180 HV
Material	Bending Strength	≥400 MPa
Magnetic	Saturation Magnetic Induction	≥1.5 T
Magnetic	Initial Permeability	≥300 μ₀
Magnetic	Maximum Permeability	≥1000 μ₀
Magnetic	Coercivity	≤20 A/m
Magnetic	Core Loss at 1.0T/50Hz	≤1.5 W/kg
Magnetic	Core Loss at 1.0T/400Hz	≤12 W/kg
Reliability	Operating Temperature Range	-40℃ to 180℃
Reliability	Dielectric Withstand Voltage	≥500 VAC for 1 minute
Reliability	Corrosion Resistance	No significant rust after 48h neutral salt spray test
Dimensions	Outer Diameter	Φ100.0 ±0.1 mm
Dimensions	Inner Diameter	Φ65.0 ±0.1 mm
Dimensions	Thickness	10.0 ±0.05 mm
Dimensions	Number of Teeth	18

Performance Advantages Over Conventional and Competing Core Solutions

The most important competitive advantage of this SMC stator core is its ability to support three-dimensional magnetic circuit design. Conventional laminated silicon steel cores are excellent for many two-dimensional magnetic paths, but their layered structure limits magnetic flux movement in the direction perpendicular to the laminations. When motor designers need axial flux, transverse flux, or compact three-dimensional flux distribution, laminated cores can become less efficient or more difficult to manufacture. The SMC stator core enables more flexible flux routing, which is valuable for axial-flux air conditioner motors and other compact high-efficiency motor architectures.

A second advantage is reduced eddy current loss. The insulated particle structure of SOMALOY 700HR-3P helps interrupt circulating currents inside the core. This is especially beneficial in inverter-driven motors where switching and variable operating speeds expose the magnetic core to a broader range of frequencies. At 1.0T/50Hz, core loss is specified at no more than 1.5 W/kg. At 1.0T/400Hz, core loss is specified at no more than 12 W/kg. These values support efficient operation in both standard and higher-frequency conditions.

A third advantage is manufacturing flexibility. The 18-tooth ring structure can be formed by powder metallurgy compaction, allowing complex tooth geometry to be produced in a single pressing process. Compared with stacked laminations, this can reduce tooling complexity for certain geometries, avoid lamination stacking errors, and reduce the need for extensive post-machining. Near-net-shape forming also improves material utilization and can support stable mass production once the die and process parameters are optimized.

A fourth advantage is lightweight potential. Compared with certain traditional silicon steel core structures, SMC stator cores can contribute to reduced motor weight. In air conditioner systems, reducing motor mass can improve dynamic response, ease installation, reduce load on supporting structures, and support compact appliance design. Lightweight construction is particularly relevant for modern smart appliances where space, noise, and energy efficiency are all important design priorities.

A fifth advantage is improved acoustic potential. Motor noise is influenced by electromagnetic force waves, mechanical vibration, bearing quality, rotor balance, and the uniformity of the air gap. The precise tooth profile, controlled flatness, and consistent magnetic structure of this SMC stator core help reduce irregular electromagnetic excitation. Low magnetostriction and uniform magnetic circuit behavior can contribute to quieter operation, which is essential for household air conditioners, bedroom installations, fresh air systems, and purification equipment.

A sixth advantage is reliability under temperature and load. The product is specified for operation from -40℃ to 180℃, making it suitable for diverse indoor and outdoor HVAC environments. It also demonstrates thermal shock resistance, with no cracking after 10 cycles between 150℃ and room temperature. This matters because air conditioner motors may experience temperature fluctuations during startup, shutdown, seasonal operation, defrosting cycles, and high-load conditions.

Powder Metallurgy Manufacturing Process

The manufacturing process begins with the selection and preparation of soft magnetic composite powder. The material must meet strict requirements for particle size distribution, coating integrity, flowability, compressibility, and magnetic response. Since the insulating layer around the iron powder particles is essential for eddy current reduction, material handling must preserve coating quality and avoid contamination. Proper powder preparation supports stable compaction and consistent final performance.

During compaction, the powder is filled into a precision die and pressed under controlled pressure to form the ring-shaped toothed stator core. This step is critical. The part has 18 teeth and tight dimensional tolerances, so die design, punch alignment, powder filling uniformity, and pressing parameters must be carefully controlled. If powder filling is inconsistent, different regions of the core may have different density levels. This could affect magnetic permeability, mechanical strength, and dimensional stability. Advanced powder metallurgy manufacturing therefore relies on precise forming equipment, experienced process engineers, and strict in-process monitoring.

After compaction, the green part undergoes a heat treatment or sintering-related process suitable for the SMC material system. The purpose is to develop mechanical strength, stabilize the structure, and preserve the electrical insulation between particles. Unlike conventional high-temperature sintering of some powder metallurgy parts, soft magnetic composites require carefully balanced thermal treatment because excessive heat may damage particle insulation and reduce resistivity. Process control is therefore fundamental to achieving both strength and low core loss.

Precision post-processing follows the primary forming and thermal treatment steps. For this stator core, tooth profile tolerance is controlled to ±0.03 mm, flatness to no more than 0.05 mm, and parallelism to no more than 0.03 mm. These values require accurate machining, grinding, sizing, calibration, or other finishing operations depending on the production route. The objective is to ensure that the stator core fits precisely with windings, housings, and the motor assembly interface.

Inspection is integrated throughout the process. Dimensional inspection verifies outer diameter, inner diameter, thickness, tooth profile, flatness, and parallelism. Material and physical property tests may include density, hardness, bending strength, and resistivity. Magnetic performance evaluation may include permeability, coercivity, saturation magnetic induction, and core loss under defined test conditions. Environmental reliability tests may include dielectric withstand voltage, salt spray exposure, and thermal shock cycles.

Jiande Welfine Technology Co., Ltd. supports this manufacturing route with advanced production and testing equipment, including high-efficiency presses, high-temperature sintering furnaces, precision forming machines, and quality inspection systems. The company’s experience in powder metallurgy bushings, self-lubricating components, and precision sintered parts provides a strong foundation for producing magnetic material components that require both forming accuracy and material reliability.

Dimensional Precision and Its Effect on Motor Assembly

Precision is not merely a manufacturing preference; it is a performance requirement. In motor assembly, the stator core must interact with copper windings, insulating components, housings, rotors, shafts, bearings, and electronic control systems. Any dimensional instability in the core may introduce secondary problems. For example, if tooth geometry is inconsistent, winding placement may become uneven. If flatness is poor, the air gap may vary. If parallelism is not controlled, the rotor-stator relationship may become asymmetric. These issues can reduce efficiency, increase noise, and shorten service life.

The product’s outer diameter tolerance of ±0.1 mm and inner diameter tolerance of ±0.1 mm support accurate installation within the motor housing and alignment with the rotor system. The thickness tolerance of ±0.05 mm helps maintain axial spacing, especially in axial-flux motor designs where the axial air gap is a primary performance factor. Tooth profile tolerance of ±0.03 mm supports winding consistency and magnetic symmetry. Flatness of no more than 0.05 mm and parallelism of no more than 0.03 mm are especially important for reducing vibration and ensuring repeatable motor performance.

Competitor products may sometimes focus mainly on material magnetic properties while underestimating the importance of geometry. However, in a real motor, excellent material properties cannot compensate fully for poor dimensional accuracy. A high-performance magnetic material must be combined with precision forming and finishing. This is one of the key strengths of the SMC stator core described here: it integrates soft magnetic composite performance with manufacturing accuracy suitable for motor assembly.

Energy Efficiency and Core Loss Reduction

Energy efficiency is one of the most important reasons to adopt an SMC stator core. In any motor, losses can be grouped broadly into copper loss, iron loss, mechanical loss, and additional stray loss. The stator core directly affects iron loss, which includes hysteresis loss and eddy current loss. At higher operating frequencies, eddy current loss becomes increasingly significant. Since inverter air conditioner motors often operate across variable frequencies, reducing core loss is critical for improving seasonal energy efficiency.

The SMC material’s insulated particle structure increases electrical resistance inside the core and limits eddy current paths. Instead of allowing large current loops to develop in conductive steel, the structure restricts current circulation at the particle level. This reduces heat generation and helps maintain efficient motor operation. Lower heat also benefits insulation life, bearing environment, winding resistance stability, and overall system reliability.

With core loss specified at no more than 1.5 W/kg at 1.0T/50Hz and no more than 12 W/kg at 1.0T/400Hz, the product is suitable for high-efficiency motor designs where low magnetic loss is required. In practical air conditioner applications, reduced core loss can contribute to lower electricity consumption, improved energy efficiency ratings, and better compliance with modern energy-saving standards.

Efficiency improvement also has a thermal benefit. A cooler motor can operate with less stress on insulation materials and electronic control systems. Reduced heat generation may allow designers to optimize cooling structures or reduce excessive safety margins. Over the service life of an air conditioner, small efficiency improvements can produce meaningful energy savings, especially in regions where cooling or heating systems operate for many hours each year.

Noise Reduction and Comfort-Oriented Design

Air conditioners are installed in homes, offices, hotels, hospitals, schools, commercial buildings, and many environments where acoustic comfort matters. Motor noise can become a major factor in user satisfaction. Although fan design and airflow noise are important, electromagnetic and mechanical noise from the motor can also influence the sound profile of the appliance.

The SMC stator core contributes to quiet operation in several ways. First, precise tooth geometry supports balanced electromagnetic forces. When magnetic forces are uneven, they can excite vibration in the stator structure. Second, uniform material density and consistent magnetic performance reduce localized saturation or flux imbalance. Third, dimensional control of flatness and parallelism supports a uniform air gap, which is one of the most important conditions for low vibration. Fourth, the material’s low eddy current loss reduces thermal gradients that could otherwise lead to distortion or stress.

For household inverter air conditioners, quiet operation is especially valuable during nighttime use. A motor that runs efficiently and smoothly at low speed can improve sleeping comfort. For fresh air systems and air purification equipment, low-speed operation is common, and noise must be minimized to avoid disturbing occupants. For commercial HVAC systems, reduced motor noise contributes to a more comfortable building environment and may reduce the need for additional acoustic insulation.

Reliability in Demanding HVAC Environments

Air conditioner motors often face demanding conditions. Outdoor units may be exposed to temperature changes, humidity, dust, and corrosive atmospheres. Indoor units may operate for long hours with repeated speed changes. Commercial systems may run continuously and require stable performance over years of operation. A stator core used in these environments must remain mechanically sound and magnetically stable.

The SMC stator core is specified for an operating temperature range of -40℃ to 180℃. This broad range supports use in both cold and hot climates and allows the component to tolerate temperature rise during motor operation. The dielectric withstand voltage specification of at least 500 VAC for one minute provides confidence in insulation-related reliability. Corrosion resistance is demonstrated by no significant rust after a 48-hour neutral salt spray test, supporting durability during storage, transportation, and application in humid environments.

Thermal shock resistance is also important. The product is specified to show no cracking after 10 cycles between 150℃ and room temperature. Repeated thermal cycling can create stress due to expansion and contraction. A core that resists cracking helps maintain motor reliability and prevents failure modes associated with structural damage, magnetic discontinuity, or assembly looseness.

The company’s packaging approach further supports reliability. Moisture-proof and rust-proof independent packaging helps prevent oxidation and mechanical damage during transportation. For precision magnetic components, packaging is not a minor detail. Surface damage, chipping, corrosion, or deformation can affect assembly and performance. Proper packaging protects the value created during manufacturing.

Application Scenarios

Household Inverter Air Conditioner Motors

The SMC stator core is suitable for indoor and outdoor drive motors used in household inverter air conditioners. It is especially valuable in higher-capacity models, such as units of 1.5 HP and above, where motor efficiency and thermal stability are important. By reducing core loss and supporting precise magnetic circuit design, the component helps air conditioner motors achieve rapid cooling or heating while maintaining low noise and energy-efficient operation.

Inverter air conditioners vary motor speed according to cooling or heating demand. This reduces energy waste compared with simple on-off control, but it also places demands on motor performance across a wide operating range. A stator core with strong high-frequency characteristics and stable magnetic properties helps the motor remain efficient at different speeds.

Commercial Central Air Conditioner Fan Motors

Commercial multi-split systems, ducted air conditioners, and central HVAC fan motors often operate for long periods. Energy efficiency in these systems can have a major impact on building operating costs. The SMC stator core supports efficient fan motor design by reducing magnetic losses and improving consistency under continuous load.

Reliability is equally important in commercial systems. Motor failure can disrupt building comfort and lead to maintenance costs. The product’s thermal stability, mechanical strength, corrosion resistance, and dimensional precision all contribute to dependable long-term operation.

Fresh Air Systems and Air Purification Equipment

Fresh air systems and air purifiers often require motors that operate quietly, steadily, and efficiently at low to medium speeds. These systems may run for many hours every day, and users expect low noise. The SMC stator core provides stable magnetic circuit support under low-speed, high-torque requirements, helping equipment maintain smooth airflow and quiet operation.

Because air purification and ventilation equipment are increasingly integrated into smart home ecosystems, compactness and efficiency are also important. The lightweight and flexible design potential of the SMC stator core supports the development of smaller, more efficient drive motors.

Smart Home Appliance Drive Motors

Beyond air conditioning systems, the component can be extended to other high-efficiency appliance motors, including dehumidifiers, portable air conditioners, ventilation units, and other smart home devices. As appliances become more intelligent, energy regulations become stricter, and user expectations increase, motor manufacturers need magnetic core components that provide efficiency, low noise, and reliable batch consistency.

Company Manufacturing Strengths

Jiande Welfine Technology Co., Ltd. was established in 2001 and has developed into a high-tech enterprise integrating research and development, production, and sales. The company focuses on powder metallurgy sintering and related precision machining. Its product background includes powder metallurgy bushings, self-lubricating bushings, and precision structural parts used across multiple industrial fields. This long-term specialization in powder metallurgy gives the company a strong technical foundation for manufacturing SMC magnetic components.

The company operates a modern 13,039-square-meter production base and employs more than 150 skilled personnel. Advanced production and testing equipment support high-volume and high-consistency manufacturing. High-efficiency presses enable accurate powder compaction. High-temperature sintering furnaces and controlled heat treatment equipment support material stabilization. Precision forming machines and post-processing equipment help achieve strict dimensional tolerances. Inspection systems verify that products meet customer requirements before delivery.

One of the company’s major strengths is its ability to provide OEM and ODM customization based on customer drawings or samples. Motor manufacturers often require unique core dimensions, tooth counts, tooth shapes, assembly interfaces, and performance targets. Rather than offering only standard products, the company can work with customers to develop customized powder metallurgy solutions. This flexibility is important in the air conditioner motor industry, where different platforms may require different stator architectures.

The company strictly implements quality management systems and has passed ISO 9001:2015 and IATF 16949:2016 certifications. These certifications demonstrate a structured approach to process control, quality documentation, continuous improvement, traceability, and customer satisfaction. For motor manufacturers, supplier quality consistency is essential. A stator core must not only perform well in sample testing; it must remain stable across mass production batches. The company’s quality system supports this requirement.

Another strength is accumulated process knowledge. Powder metallurgy manufacturing is sensitive to many variables: powder characteristics, die geometry, compaction pressure, lubrication, green strength, heat treatment profile, finishing method, and inspection standards. Experience matters because stable production depends on understanding how these variables interact. With more than 20 years of industry experience, the company is able to control production risks and support reliable delivery.

Comparison with Alternative Core Technologies

When evaluating stator core solutions, motor designers often compare SMC cores with laminated silicon steel, ferrite components, and other powder magnetic materials. Each has its place, but the SMC stator core offers a distinctive balance of magnetic performance, manufacturing flexibility, and high-frequency efficiency.

Laminated silicon steel is strong in conventional radial-flux motors and has high magnetic permeability in the lamination plane. However, it is less suitable for three-dimensional magnetic circuits and can require complex stacking or assembly for axial-flux structures. Stamping also creates material scrap, and the lamination stack may require additional bonding, welding, riveting, or mechanical fixing. For complex toothed ring geometries, SMC near-net-shape compaction can simplify production and enable geometries that are difficult to realize through laminations.

Ferrite materials offer high electrical resistivity but generally have lower saturation flux density than iron-based soft magnetic composites. For motor applications requiring higher torque density, saturation magnetic induction is important. The SMC stator core’s specified saturation magnetic induction of at least 1.5 T provides a useful balance between low eddy current loss and practical magnetic loading.

Some competing SMC products may offer similar general concepts but fall short in dimensional accuracy, density uniformity, mechanical strength, or production consistency. The product described here emphasizes a complete engineering package: SOMALOY 700HR-3P material, controlled powder metallurgy compaction, heat treatment, precision post-processing, strict tolerance control, reliability testing, and quality-certified manufacturing. This integration is what differentiates a production-ready motor core from a basic magnetic material part.

Design Value for Motor Engineers

For motor engineers, the SMC stator core provides several design opportunities. The three-dimensional magnetic capability can support axial-flux layouts that offer compact axial length and high torque density. The ring-shaped toothed structure allows efficient winding arrangements. The low high-frequency loss supports inverter operation. The controlled dimensions support repeatable assembly and predictable electromagnetic behavior.

When designing with this core, engineers can evaluate the magnetic circuit using finite element analysis, considering flux density distribution, saturation zones, copper winding space, air gap uniformity, and thermal paths. Because the material behavior differs from laminated silicon steel, design optimization should account for isotropic magnetic characteristics and SMC-specific loss behavior. Properly applied, the material can unlock motor architectures that are difficult to achieve with conventional cores.

The product is also valuable for efficiency upgrades. If an existing air conditioner motor platform is approaching the limits of laminated steel performance, an SMC stator core may allow designers to reduce iron loss, improve packaging, or explore axial-flux alternatives. For new platforms, the component can be considered from the beginning as part of a high-efficiency, low-noise, lightweight motor strategy.

Quality Control and Testing Philosophy

Quality control for an SMC stator core must cover more than final dimensions. The product’s performance depends on the interaction between material properties, magnetic behavior, mechanical strength, environmental resistance, and assembly accuracy. A complete testing philosophy includes incoming powder verification, process control during compaction, thermal process monitoring, dimensional inspection, mechanical testing, magnetic testing, and reliability validation.

Density testing helps confirm that compaction has produced a stable structure. Resistivity testing confirms that the insulating particle system remains effective. Hardness and bending strength testing support mechanical reliability. Magnetic tests verify saturation induction, permeability, coercivity, and core loss. Environmental tests evaluate temperature tolerance, dielectric resistance, corrosion resistance, and thermal shock behavior.

Traceability is equally important. In high-volume motor production, customers need confidence that each batch can be tracked and that process parameters are controlled. The company’s quality management certifications support standardized documentation and corrective action procedures. This reduces supply risk and helps customers maintain stable motor production.

Packaging, Delivery, and Batch Supply

Precision magnetic components must be protected from moisture, corrosion, impact, and contamination. The SMC stator core is packaged with moisture-proof and rust-proof independent protection to reduce the risk of oxidation and mechanical damage during transportation. This is especially important because tooth edges, flatness, and surface condition may influence assembly quality.

Delivery cycles can be arranged flexibly according to order requirements. For motor manufacturers, stable batch supply is essential. Production schedules for air conditioner motors are often seasonal and demand can increase rapidly before peak cooling or heating seasons. A supplier with flexible production scheduling and stable process capability helps customers manage inventory, reduce delivery risk, and maintain production continuity.

The company’s integrated manufacturing base supports this requirement. By combining production, post-processing, inspection, and customization capabilities, Jiande Welfine Technology Co., Ltd. can respond to different project stages, from prototype development to batch manufacturing. Customers can provide drawings or samples, and the company can support product development, process evaluation, and production optimization.

Q&A Section

What is an SMC stator core?

An SMC stator core is a motor magnetic core made from soft magnetic composite material. Instead of being built from stacked steel laminations, it is formed from insulated iron powder particles through powder metallurgy processing. This structure supports three-dimensional magnetic flux paths and helps reduce eddy current loss.

Why is SOMALOY 700HR-3P used for this product?

SOMALOY 700HR-3P is selected because it offers a strong balance of magnetic performance, electrical resistivity, mechanical strength, and suitability for powder metallurgy forming. It supports low eddy current loss, stable permeability, and reliable operation in high-efficiency motor applications.

How does this core improve air conditioner motor efficiency?

The core improves efficiency mainly by reducing magnetic losses, especially eddy current loss under variable-frequency operation. Lower core loss means less energy is converted into heat, allowing more input power to become useful motor output. This supports lower energy consumption in air conditioner systems.

What makes it better than a traditional laminated silicon steel core?

Compared with many laminated silicon steel cores, this SMC core offers greater freedom for three-dimensional magnetic circuit design, lower eddy current loss at higher frequencies, near-net-shape forming of complex teeth, and lightweight design potential. It is particularly attractive for axial-flux and compact high-efficiency motor structures.

Is the product suitable for high-temperature operation?

Yes. The operating temperature range is specified from -40℃ to 180℃. The product also demonstrates thermal shock resistance, with no cracking after 10 cycles between 150℃ and room temperature.

Why are tight tolerances important for the stator core?

Tight tolerances help ensure accurate winding placement, uniform air gap, low vibration, and stable electromagnetic performance. The product controls tooth profile tolerance to ±0.03 mm, flatness to no more than 0.05 mm, and parallelism to no more than 0.03 mm.

Can the stator core be customized?

Yes. Jiande Welfine Technology Co., Ltd. provides OEM and ODM customization based on customer drawings or samples. Dimensions, tooth geometry, and performance requirements can be developed according to specific motor platforms.

What applications are most suitable for this product?

The core is suitable for household inverter air conditioner motors, commercial central air conditioner fan motors, fresh air systems, air purification equipment, dehumidifiers, portable air conditioners, and other high-efficiency smart appliance drive motors.

How does the product support quiet operation?

Quiet operation is supported by precise tooth geometry, uniform magnetic performance, low core loss, controlled flatness, and stable assembly accuracy. These features help reduce vibration, electromagnetic imbalance, and thermal distortion.

What quality systems support production?

The manufacturer implements strict quality management and has passed ISO 9001:2015 and IATF 16949:2016 certifications. These systems support process control, traceability, inspection consistency, and continuous improvement.

Conclusion

The SMC stator core made from SOMALOY 700HR-3P is a high-value magnetic component for the next generation of energy-efficient air conditioner motors. It combines low eddy current loss, three-dimensional magnetic design freedom, precise toothed geometry, mechanical strength, thermal reliability, and lightweight potential. These advantages make it especially suitable for axial-flux motors, inverter air conditioner motors, commercial HVAC fan motors, fresh air systems, air purifiers, and smart appliance drive platforms.

Its advantages over many conventional and competing solutions come from the integration of material science and manufacturing control. The insulated iron powder structure supports high-frequency efficiency. Powder metallurgy compaction enables complex near-net-shape geometry. Precision post-processing ensures assembly accuracy. Reliability testing confirms suitability for demanding environments. Certified quality management supports stable batch production.

Jiande Welfine Technology Co., Ltd. strengthens the value of the product through advanced powder metallurgy manufacturing capabilities, more than 20 years of industry experience, a modern production base, skilled employees, OEM/ODM customization, and strict quality systems. For motor manufacturers seeking higher efficiency, lower noise, compact structure, and reliable supply, this SMC stator core provides a practical and forward-looking solution.

References

1. German, R. M. Powder Metallurgy and Particulate Materials Processing. Metal Powder Industries Federation.

2. Jiles, D. Introduction to Magnetism and Magnetic Materials. CRC Press.

3. Krings, A., and Soulard, J. Overview and Comparison of Iron Loss Models for Electrical Machines. Journal of Electrical Engineering.

4. Shokrollahi, H., and Janghorban, K. Soft Magnetic Composite Materials. Journal of Materials Processing Technology.

5. Bozorth, R. M. Ferromagnetism. IEEE Press.

6. ISO 9001:2015 Quality Management Systems: Requirements. International Organization for Standardization.

7. IATF 16949:2016 Quality Management System Standard for Automotive Production and Relevant Service Parts Organizations. International Automotive Task Force.

Product: SMC Stator Core (SOMALOY 700HR-3P)
