High Performance Sintered Self-Lubricating Bushings for Heavy-Duty Motion Systems

High performance sintered self-lubricating bushings are engineered for applications where motion, load, friction, heat, and reliability must be controlled within a compact bearing solution. In industrial machinery, automotive systems, power transmission equipment, agricultural machinery, hydraulic assemblies, and high-temperature operating environments, a bushing is often a small component with a large responsibility. It supports shafts, guides movement, reduces friction, absorbs shock, and helps prevent premature wear of surrounding parts. When the operating environment involves high loads, repeated start-stop cycles, oscillating movement, dust, elevated temperature, or limited access for maintenance, conventional bushings may struggle to deliver consistent performance. Sintered self-lubricating bushings are designed to solve these challenges through powder metallurgy technology, controlled porosity, and integrated lubrication.

The high performance sintered self-lubricating bushing discussed in this article is based on advanced powder sintering technology and is designed for high-speed, high-load, and high-temperature applications. Its core value lies in the combination of structural strength and internal lubrication. Instead of depending only on external oil or grease supply, the porous sintered structure stores lubricant within the material. During operation, heat and shaft movement encourage the lubricant to migrate toward the working surface, forming a protective lubricating film. This film reduces direct metal-to-metal contact, stabilizes friction, lowers wear, and extends service life.

Compared with conventional machined bushings, many sintered bushings offer a more balanced solution for demanding service conditions. A machined bushing may have good dimensional accuracy and material strength, but it usually requires regular external lubrication. If oil supply is interrupted or maintenance is delayed, friction rises quickly, surface wear accelerates, and the risk of seizure increases. A high performance sintered self-lubricating bushing reduces this dependence on external lubrication, making it especially useful in enclosed mechanisms, hard-to-reach assemblies, dusty environments, and equipment that must run reliably for long intervals.

Jiande Welfine Technology Co., Ltd. manufactures powder metallurgy bushings, self-lubricating bushings, and precision sintered components for industrial customers requiring stable quality and customized solutions. Established in 2001, the company integrates research and development, production, sales, powder metallurgy sintering, and related precision machining. Its manufacturing base covers 13,039 square meters and is equipped with advanced production and testing equipment, including high-efficiency presses, high-temperature sintering furnaces, precision forming machines, and inspection systems. With more than 20 years of industry experience and over 150 skilled employees, the company provides OEM and ODM solutions based on drawings, samples, working conditions, and performance targets.

The performance of a sintered self-lubricating bushing is not determined by material alone. It depends on powder selection, mixing consistency, compaction pressure, sintering atmosphere, temperature control, sizing, oil impregnation, machining, and final inspection. Each step influences density, porosity, mechanical strength, lubrication capacity, surface quality, dimensional accuracy, and service stability. This is why advanced manufacturing capability is a major competitive advantage. A bushing designed for high load conditions must not only be strong; it must also retain lubricant, resist wear, maintain geometry, and operate reliably under repeated motion.

High Performance Sintered Self-lubricating Bushings

Product Overview

High performance sintered self-lubricating bushings are powder metallurgy bearing components produced by compacting metal powders into a designed shape and then sintering them at high temperature to create a strong porous structure. The pores are later filled with oil or combined with solid lubricants such as graphite or molybdenum disulfide, depending on the operating requirements. The result is a bushing that combines metal strength with built-in lubrication.

These bushings are suitable for reciprocating, rotating, and oscillating movement. They are commonly used in shafts, pivots, hinges, gear assemblies, transmission systems, electric motors, pumps, compressors, agricultural equipment, construction machinery, automotive systems, and industrial automation mechanisms. Their ability to work under high static and dynamic loads makes them valuable in heavy-duty systems where bearing failure can lead to downtime, repair costs, and equipment damage.

The product is designed to provide excellent compressive strength, wear resistance, shock resistance, and thermal stability. In many applications, it can operate without frequent additional lubricating oil, helping reduce maintenance requirements and minimizing the risk of stuck or seized components. Its self-lubricating capability is especially important during start-up, low-speed movement, intermittent motion, and boundary lubrication conditions, where conventional fluid films may not fully develop.

High performance sintered bushings may be produced from iron-based, copper-based, or iron-copper alloy systems depending on the required balance of strength, corrosion resistance, wear performance, cost, and lubrication behavior. For high-load applications, Fe-Cu sintered alloy structures are often selected because they provide enhanced mechanical strength while maintaining beneficial porosity for lubrication storage. Solid lubricant additions can further improve performance in situations involving high temperature, dusty environments, or difficult lubrication conditions.

The product’s advantages are not limited to its operating behavior. Powder metallurgy also supports efficient mass production, reduced material waste, near-net-shape forming, and repeatable dimensional control. Complex geometries, oil grooves, flanges, special wall thicknesses, and customized structures can be produced according to customer requirements. For equipment manufacturers, this means a bushing can be optimized for a specific shaft, load, speed, temperature, and assembly environment instead of relying only on standard catalog dimensions.

Why Self-Lubricating Sintered Bushings Matter in Modern Equipment

Modern machinery is expected to operate longer, faster, cleaner, and with less maintenance. At the same time, machine designs are becoming more compact, leaving less space for traditional lubrication systems. Many applications expose bearings to dust, vibration, impact, humidity, temperature variation, or corrosive atmospheres. Under these conditions, the bearing material must do more than simply support a shaft. It must also manage friction and protect the contact surfaces throughout the operating cycle.

Self-lubricating sintered bushings address this need by storing lubricant within their porous structure. When the shaft begins to rotate or oscillate, capillary action, temperature rise, and pressure changes help release lubricant to the interface between the shaft and bushing. When the equipment stops and cools, part of the lubricant can be reabsorbed into the pores. This cycle provides a continuous and stable lubrication effect, reducing the need for frequent external oiling.

In high-load systems, friction control is critical. If friction is unstable, the bushing temperature rises, lubrication breaks down, and wear particles may form. These particles can accelerate abrasive damage and increase clearance between the shaft and bushing. Excessive clearance leads to vibration, noise, reduced alignment accuracy, and possible failure of related components. A self-lubricating sintered bushing helps slow this chain reaction by maintaining a lubricating film even when operating conditions are difficult.

Compared with polymer bushings, sintered metal bushings generally provide higher compressive strength and better dimensional stability under heavy load. Compared with ordinary machined metal bushings, they offer the added benefit of internal lubrication. Compared with rolling bearings, they can provide a compact, cost-effective, shock-resistant, and quiet solution in oscillating or low-speed applications where rolling elements may not be ideal. This combination makes sintered self-lubricating bushings a preferred option for many mechanical engineers.

Key Performance Advantages

High Load Capacity

Load capacity is one of the most important performance indicators for heavy-duty bushings. A bushing must carry radial or axial forces without excessive deformation, cracking, edge loading, or loss of alignment. In powder metallurgy bushings, load capacity is influenced by powder composition, compacting pressure, density, sintering temperature, sintering time, and post-sintering operations. Higher density generally improves strength, while controlled porosity supports oil storage. Therefore, the manufacturing process must balance strength and lubrication.

High performance sintered bushings use controlled material density and alloy structure to withstand high static and dynamic loads. Iron-copper alloy systems offer improved strength compared with softer bearing materials, while the sintered matrix can be adjusted to retain enough porosity for lubrication. This balance allows the bushing to operate under continuous stress while reducing the risk of dry friction and surface damage.

Excellent Wear Resistance

Wear resistance determines how long a bushing can maintain its working dimensions and surface quality. In applications involving repeated movement, high pressure, or contamination, wear resistance directly affects service life. Sintered self-lubricating bushings reduce wear through a combination of material hardness, porous oil supply, and lubricating film formation. The lubricant separates contact surfaces, reduces adhesive wear, and carries away some frictional heat.

In high-performance designs, wear resistance can be further enhanced by optimizing powder particle distribution, sintering uniformity, surface finish, hardness, and lubricant type. Solid lubricants such as graphite and molybdenum disulfide may be embedded in the metal matrix to improve boundary lubrication behavior. These dry lubricants can form a low-shear-strength transfer film on the working surface, helping reduce friction under severe conditions.

Self-Lubricating Operation

The defining advantage of sintered bushings is their self-lubricating capability. Unlike solid machined bushings that require lubricant to be supplied from outside, sintered bushings can store oil inside interconnected pores. During operation, the bushing releases lubricant where it is needed most. This reduces maintenance frequency and helps prevent failure caused by forgotten lubrication, blocked oil channels, or insufficient grease distribution.

Self-lubrication is especially valuable in applications with limited maintenance access. It is also beneficial in equipment that works in dusty or dirty conditions, because excessive external grease may attract abrasive particles. A properly designed sintered bushing can provide a cleaner and more controlled lubrication solution, reducing the risk of contamination-related wear.

Thermal Stability

High-load motion generates heat. If a bushing cannot tolerate temperature rise, the lubricant may degrade, the material may soften, or clearance may change. High performance sintered self-lubricating bushings are designed for stable operation in demanding thermal environments. Material selection, oil type, solid lubricant content, and sintering quality all contribute to thermal stability.

For standard oil-impregnated bushings, operating temperature may commonly range from low ambient temperatures to moderate heat levels depending on the lubricant used. For higher-temperature applications, special oils or solid lubricants may be selected. The ability to customize lubricant systems allows the bushing to meet different industrial requirements.

Shock and Vibration Resistance

Many heavy-duty applications involve impact loads, vibration, and misalignment. Construction machinery, agricultural equipment, and material handling systems often experience irregular loading rather than smooth continuous rotation. Sintered metal bushings can absorb shock better than some precision rolling bearings because they provide a broad contact surface and a simple robust structure. Their compact form and metal matrix help them tolerate tough working conditions.

Low Maintenance and Long Service Life

Maintenance reduction is a major reason engineers choose self-lubricating bushings. Lower maintenance does not only reduce labor cost; it also reduces downtime, improves safety, and increases equipment availability. When a bushing can maintain lubrication internally, the entire system becomes less dependent on manual service schedules. This is a significant advantage in remote equipment, enclosed assemblies, high-production machinery, and systems where stopping the machine is expensive.

Comparison with Conventional Bushing Solutions

The following table summarizes major differences between high performance sintered self-lubricating bushings and conventional machined bushings. The comparison is general and may vary depending on design, material, lubricant, and operating conditions, but it illustrates why sintered bushings are often selected for demanding applications.

Performance Factor	High Performance Sintered Self-Lubricating Bushing	Conventional Machined Bushing
Lubrication Method	Internal oil storage and optional solid lubricant support	Usually requires external oil or grease supply
Maintenance Requirement	Low maintenance in suitable applications	Higher maintenance due to regular lubrication needs
Friction Stability	Stable due to continuous lubricant release	Can fluctuate if lubrication is insufficient
High Load Performance	Optimized density and alloy design for strong load support	Depends heavily on selected bulk material
Wear Resistance	Improved by lubricating film and controlled porous structure	Can be good, but depends on external lubrication reliability
Risk of Seizure	Reduced by built-in lubrication	Higher if lubrication fails
Production Efficiency	Near-net-shape powder metallurgy reduces material waste	More material may be removed by machining
Customization	Suitable for customized geometry, density, porosity, and lubricant design	Customization possible but may require more machining time
Best Use Conditions	High load, intermittent motion, limited maintenance, compact assemblies	Applications with reliable external lubrication and simpler requirements

This comparison shows that the sintered self-lubricating bushing is not merely a substitute for a conventional bushing. It is a performance-oriented solution for systems where lubrication reliability, operating stability, and maintenance reduction are essential. Its internal oil reservoir and controlled material structure provide a competitive advantage in applications where traditional lubrication systems may be inconvenient or unreliable.

Material Structure and Lubrication Mechanism

The structure of a high performance sintered self-lubricating bushing is the key to its function. During powder metallurgy production, metal powders are compacted under high pressure to form a green part. This part is then sintered at high temperature under a controlled atmosphere. The sintering process bonds powder particles together while preserving a network of fine pores. These pores are not defects when properly controlled; they are functional reservoirs for lubricant.

For high-load applications, Fe-Cu sintered alloy structures can provide an effective balance of strength and bearing performance. Iron contributes mechanical strength and load capacity, while copper can improve conformability, thermal conductivity, and tribological behavior. The final composition may be adjusted to meet specific requirements such as hardness, impact resistance, machinability, or corrosion behavior. Solid lubricants such as graphite and molybdenum disulfide may be added to enhance low-friction properties, especially under boundary lubrication or elevated temperature conditions.

When the bushing is impregnated with oil, the lubricant fills the interconnected pores. Under working conditions, the shaft movement generates a pumping and wiping action at the surface. Frictional heat slightly reduces oil viscosity, making it easier for oil to move toward the bearing interface. The result is a thin lubricating film that reduces shear resistance and prevents severe adhesive wear. After operation stops, capillary forces can draw some oil back into the porous structure.

This dynamic release and reabsorption mechanism is one reason sintered bushings perform well in intermittent operation. Traditional hydrodynamic bearings may require continuous speed to generate a full oil film. In contrast, an oil-impregnated sintered bushing can provide lubrication during start-up and slow movement, where wear often begins. This makes it useful for oscillating joints, hinges, levers, linkages, and reciprocating systems.

Solid lubricants add another level of protection. Graphite has a layered crystal structure that allows sliding between layers, reducing friction. Molybdenum disulfide also has a low shear strength and performs well under high pressure. When embedded in the metal matrix, these materials can help form a transfer film on the shaft surface. This transfer film acts as a protective layer, reducing direct metal contact and stabilizing friction even when oil film conditions are not ideal.

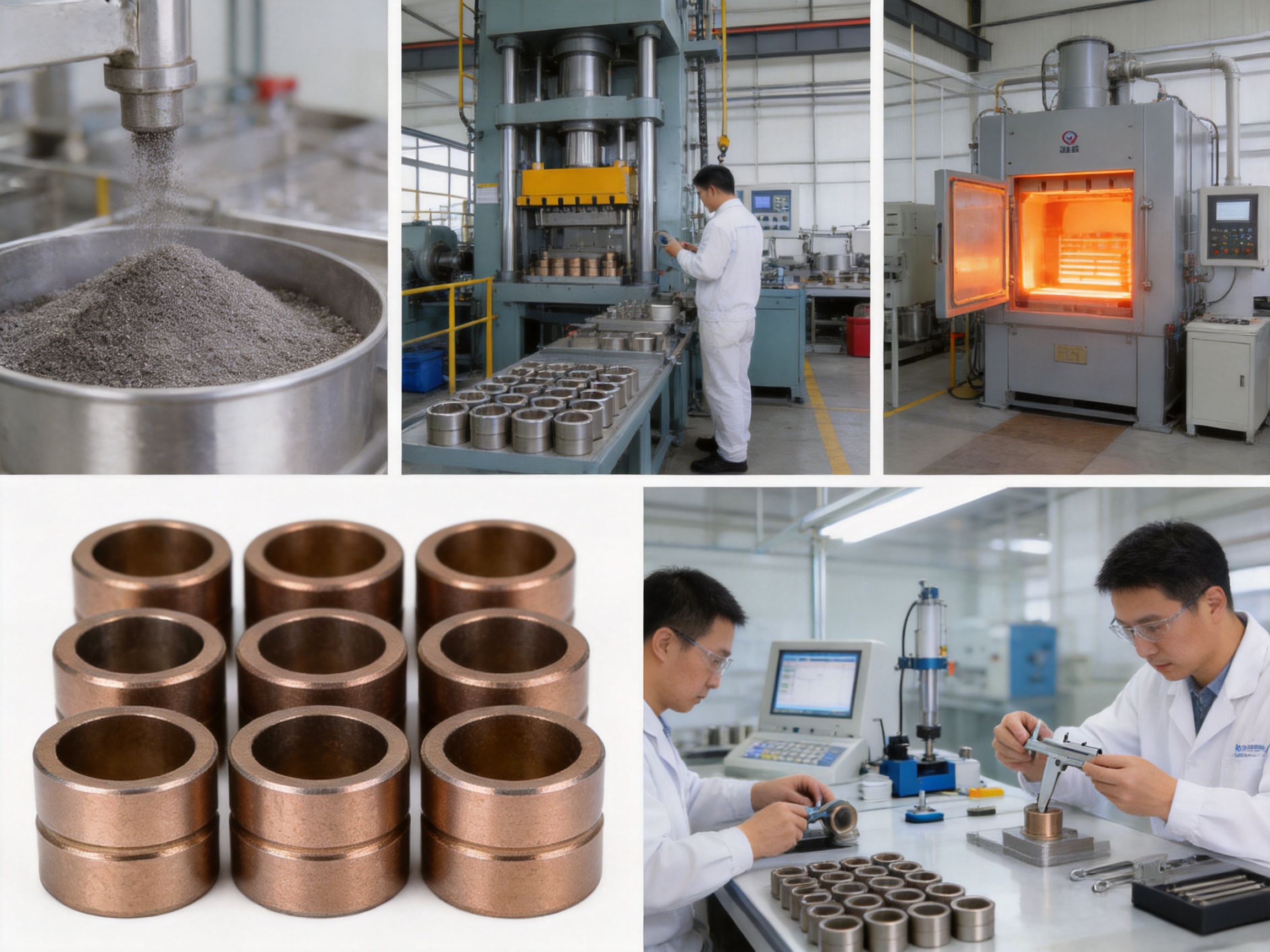

Advanced Powder Metallurgy Manufacturing Process

Powder Selection and Preparation

The manufacturing process begins with selection of suitable metal powders. Powder characteristics such as particle size, shape, purity, apparent density, flowability, and compressibility influence the final bushing properties. For high-load bushings, powder selection must support both strength and controlled porosity. The powder mixture may include iron, copper, graphite, alloying elements, lubricants for pressing, and other additives designed to improve performance.

Consistent mixing is essential. If powder distribution is uneven, the final bushing may have inconsistent density, weak zones, dimensional variation, or uneven lubrication behavior. Advanced mixing control helps ensure that each pressed part has stable composition and predictable performance. This is especially important for OEM and ODM projects where customers require repeatability across large production batches.

Compaction and Forming

After mixing, the powder is compacted in a precision mold using high-efficiency presses. Compaction pressure determines the green density and influences the final strength, shrinkage, and porosity. The press tooling must be accurately designed to produce the required inner diameter, outer diameter, length, flange, chamfer, groove, or other geometric features. Because powder metallurgy can form near-net-shape parts, it reduces the amount of machining needed after sintering.

Compaction consistency is a major manufacturing advantage. If pressure is too low, the bushing may lack strength. If pressure is too high, porosity may be reduced too much, limiting oil storage. A well-controlled process creates the correct density profile, allowing the bushing to support load while retaining enough open pores for lubricant impregnation.

Sintering Under Controlled Conditions

Sintering transforms the compacted powder body into a strong metallic structure. The part is heated to a temperature below the melting point of the main metal but high enough to create metallurgical bonding between particles. Temperature, atmosphere, belt speed, heating rate, and cooling rate all affect final properties. For iron-based and iron-copper systems, sintering quality influences strength, hardness, dimensional stability, and microstructure.

High-temperature sintering furnaces allow manufacturers to control bonding and diffusion. A stable furnace atmosphere helps reduce oxidation and supports consistent mechanical properties. Poor sintering may cause weak particle bonding, irregular shrinkage, brittleness, or unstable dimensions. Advanced sintering control is therefore one of the most important factors separating high-quality bushings from ordinary low-cost components.

Sizing, Calibration, and Precision Machining

After sintering, bushings may undergo sizing or calibration to improve dimensional accuracy. This process uses precision tooling to bring the inner diameter, outer diameter, roundness, and length closer to final specification. For applications requiring very tight tolerance, additional machining may be performed. Machining can create grooves, holes, chamfers, or special surfaces according to customer drawings.

Precision machining capability is important because different industries have different assembly requirements. Automotive components may require strict dimensional consistency. Industrial machinery may require special oil grooves or flange structures. Hydraulic systems may require high surface quality and accurate alignment. By combining powder metallurgy forming with precision machining, the manufacturer can provide both efficiency and customization.

Oil Impregnation and Lubricant Customization

Oil impregnation is a critical step for self-lubricating bushings. The sintered part is placed under conditions that allow oil to penetrate the interconnected pores. Vacuum impregnation is often used to remove air from the pores and replace it with lubricant. The selected oil must match the operating temperature, speed, load, and environmental requirements.

Different lubricant systems can be used for different applications. General industrial oils may suit moderate temperatures and loads. High-temperature oils may be used for hot environments. Solid lubricants can be used when oil alone is not sufficient or when dry lubrication behavior is required. This flexibility allows the bushing to be engineered for real operating conditions rather than treated as a generic part.

Inspection and Quality Control

Quality control verifies that each bushing meets requirements for size, density, hardness, porosity, oil content, surface finish, and appearance. Inspection may include dimensional measurement, hardness testing, density testing, oil content verification, metallographic analysis, and performance testing. Consistent inspection is essential for long-term reliability, especially when bushings are used in safety-related or high-value equipment.

Jiande Welfine Technology Co., Ltd. strictly implements quality management systems and has passed ISO 9001:2015 and IATF 16949:2016 certifications. These certifications support standardized process control, traceability, continuous improvement, and customer confidence. For customers sourcing sintered metal components, certified quality systems are important because they reduce supply risk and improve consistency from batch to batch.

Company Manufacturing Strengths

Jiande Welfine Technology Co., Ltd. has developed its manufacturing strength through more than two decades of experience in powder metallurgy sintering and precision machining. The company’s 13,039-square-meter production base provides space for organized production flow, equipment layout, material handling, inspection, and process development. A scientifically planned plant helps improve efficiency and supports stable production for both standard and custom bushing projects.

The company is equipped with advanced production and testing equipment, including high-efficiency presses, high-temperature sintering furnaces, and precision forming machines. These assets are critical for producing high performance sintered bushings because process control directly affects product quality. Pressing equipment controls density and shape. Sintering furnaces control metallurgical bonding and strength. Forming and machining equipment control final geometry. Testing equipment verifies whether the product meets specification.

More than 150 skilled employees support the company’s production, quality, engineering, and customer service capabilities. Skilled technicians understand how powder behavior, mold design, sintering conditions, and sizing operations interact. This experience is difficult to replace because powder metallurgy requires both scientific control and practical production knowledge. Small changes in powder flow, tooling wear, furnace atmosphere, or oil impregnation conditions can influence final performance.

The company provides OEM and ODM customization based on customer drawings or samples. This is a major advantage for equipment manufacturers who need bushings tailored to specific shaft dimensions, load values, speed ranges, temperature conditions, or installation spaces. Instead of forcing the machine design to fit a standard bushing, customized production allows the bushing to fit the machine’s actual performance needs.

Customization can include material selection, density control, oil content, solid lubricant addition, inner and outer diameter tolerances, flange design, groove design, chamfer structure, length, wall thickness, surface finish, and post-processing. Engineering support can help customers choose the right balance between load capacity, wear resistance, lubrication performance, and cost. This creates value beyond simple component supply; it supports better system design.

The company’s commitment to technology leadership, quality priority, stable manufacturing, continuous innovation, and long-term cooperation with global customers strengthens its competitiveness. In the powder metallurgy industry, customers need suppliers who can maintain quality over time, respond to design changes, support technical communication, and deliver reliable products across repeated orders. Manufacturing stability is therefore as important as one-time production capability.

Advantages Over Competing Bearing Solutions

Reduced Dependence on External Lubrication

One of the strongest competitive advantages of high performance sintered self-lubricating bushings is reduced dependence on external lubrication. In many machines, lubrication failure is a common cause of bearing damage. Grease may be forgotten, oil channels may clog, seals may fail, or lubricant may be washed away. When lubrication is insufficient, conventional bushings experience rapid friction increase. A sintered oil-impregnated bushing provides an internal lubricant reserve, improving reliability when external lubrication is limited.

Better Suitability for Intermittent and Oscillating Motion

Some bearing types perform best during continuous rotation at sufficient speed. However, many real applications involve intermittent movement, short strokes, oscillation, or frequent start-stop cycles. These conditions make it difficult to maintain a stable hydrodynamic oil film. Self-lubricating sintered bushings are well suited for these situations because lubricant is available at the contact surface during start-up and boundary lubrication conditions.

Compact and Simple Design

Sintered bushings provide a compact bearing solution. They do not require rolling elements, cages, complex housings, or large lubrication systems. Their simple cylindrical or flanged form allows them to be press-fit into housings and used in limited spaces. This simplicity can reduce assembly complexity and improve design flexibility.

Cost-Effective Mass Production

Powder metallurgy is efficient for producing large quantities of repeatable parts. Near-net-shape forming reduces machining time and material waste. For customers requiring stable annual demand, this can provide cost advantages compared with fully machined components. The process is also suitable for producing complex shapes that would require more machining if made from bar stock or cast material.

Improved Material Utilization

Conventional machining removes material to create the final shape. The removed chips may be recycled, but they still represent processing time, tool wear, energy use, and material handling. Powder metallurgy forms the part closer to final dimensions, reducing waste and improving production efficiency. This supports more sustainable manufacturing and competitive pricing.

Customizable Performance

A major advantage of powder metallurgy is the ability to adjust material composition and porosity. A bushing can be designed with higher density for heavier loads, higher porosity for greater oil storage, special alloying for strength, or solid lubricants for difficult conditions. This level of customization allows sintered bushings to compete strongly against standard off-the-shelf bearing solutions.

Application Areas

Industrial Machinery

Industrial machinery often uses bushings in shafts, rollers, pivots, linkages, guide mechanisms, and drive systems. These components may run continuously for long periods and may be exposed to dust, vibration, and load fluctuation. High performance sintered self-lubricating bushings help reduce maintenance and improve operational stability. Their low wear rate and stable friction are valuable in production equipment where downtime is costly.

Automotive Components

Automotive systems require compact components with consistent quality and long service life. Sintered bushings can be used in transmission components, engine-related mechanisms, seat systems, wiper assemblies, steering systems, pumps, and other moving parts. IATF 16949:2016 certification supports the quality expectations of automotive supply chains, where traceability and process control are essential.

Agricultural Equipment

Agricultural machinery operates in dusty, muddy, and high-impact environments. Maintenance may be difficult during busy operating seasons. Self-lubricating sintered bushings can reduce the need for frequent greasing and help protect pivot points, linkages, and rotating assemblies. Their shock resistance is useful in equipment exposed to uneven ground and heavy loads.

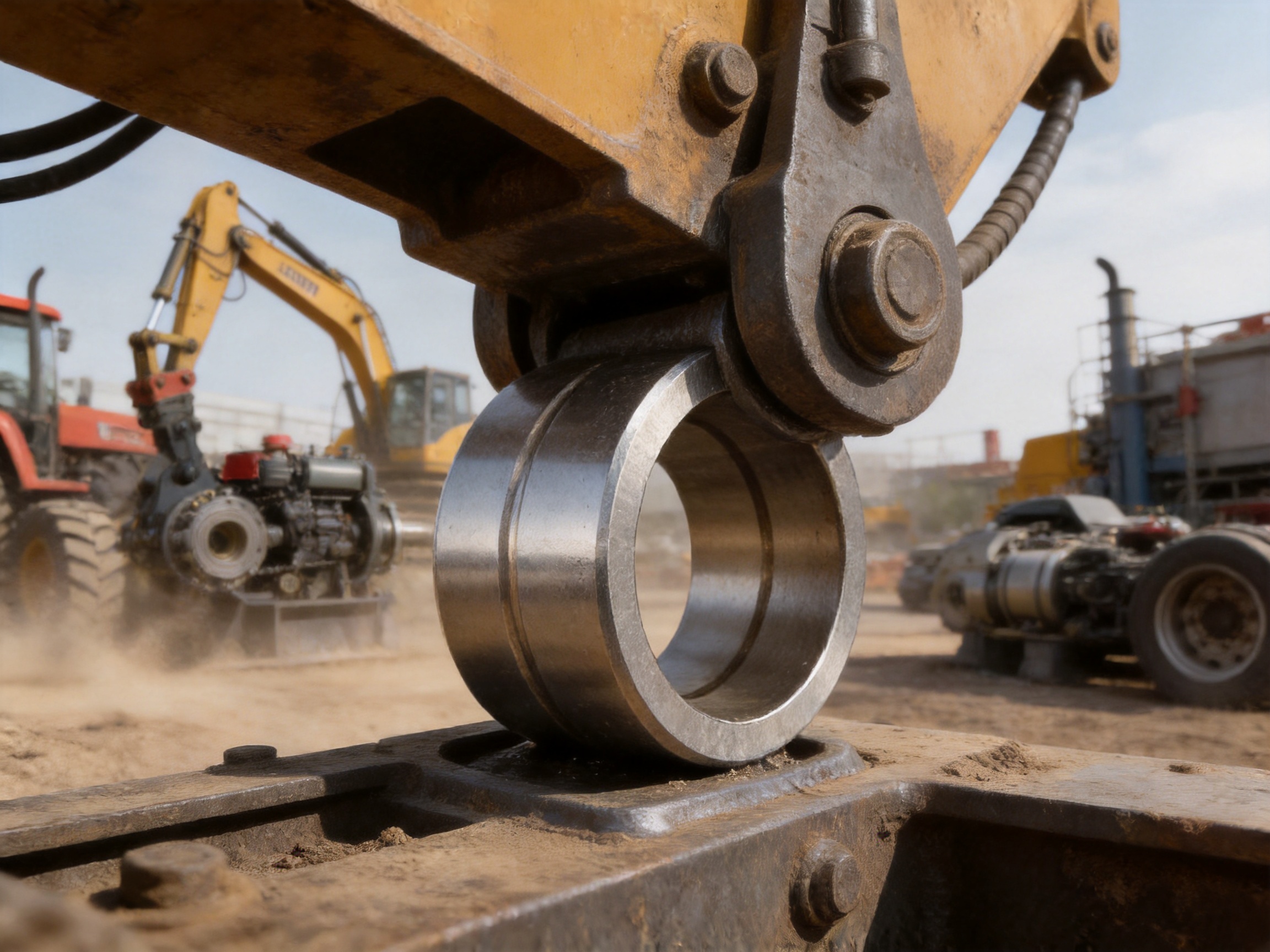

Construction Machinery

Construction equipment experiences high loads, vibration, contamination, and outdoor exposure. Bushings in joints, levers, hydraulic linkages, and rotating assemblies must withstand harsh service conditions. High load sintered bushings provide a strong and maintenance-friendly solution for selected construction machinery applications, especially where compact design and wear resistance are required.

Power Transmission Systems

Gear systems, drive shafts, couplings, and mechanical transmission assemblies require stable alignment and friction control. Excessive bushing wear can lead to vibration, noise, and reduced efficiency. Self-lubricating sintered bushings help maintain smooth movement and reduce maintenance needs in power transmission equipment.

Hydraulic Systems

Hydraulic assemblies often involve reciprocating or oscillating motion under significant load. Sintered bushings can support guide and pivot functions while reducing friction. Their ability to maintain lubrication internally is useful in compact hydraulic mechanisms where external lubrication may be limited.

Aerospace and High-Temperature Equipment

High-temperature and high-reliability applications require careful material and lubricant selection. Sintered bushings with solid lubricant support can be designed for demanding thermal and mechanical conditions. While each aerospace or high-temperature application requires detailed qualification, the powder metallurgy approach provides flexibility for developing specialized bearing structures.

Design Considerations for Selecting a High Load Sintered Bushing

Choosing the right sintered self-lubricating bushing requires understanding the working environment. Load, speed, temperature, shaft material, surface finish, alignment, duty cycle, lubricant compatibility, contamination, and installation method all influence performance. A bushing that works well in one application may not be ideal in another if conditions differ significantly.

Load is the first consideration. Engineers should evaluate both static and dynamic loads, including peak loads and impact conditions. High load applications may require increased density, stronger alloy composition, or larger bearing surface area. If the load is too concentrated, edge wear or deformation may occur.

Speed and motion type are also important. Continuous rotation, oscillation, reciprocation, and intermittent motion create different lubrication conditions. Self-lubricating bushings are particularly useful in start-stop and oscillating conditions, but the material and lubricant must still be matched to the speed and temperature generated by friction.

Temperature affects lubricant viscosity, oil life, thermal expansion, and material strength. For higher temperatures, special oils or solid lubricants may be required. If the environment is very cold, lubricant flow characteristics must also be considered. A bushing designed for room temperature industrial use may not perform the same way in extreme thermal conditions.

Shaft quality strongly influences bushing life. A rough shaft can accelerate wear, while a properly finished shaft supports stable lubrication film formation. Shaft hardness, surface roughness, roundness, and corrosion resistance should be considered together with bushing material. Good alignment is also essential. Misalignment can create uneven loading and localized wear.

Installation method matters because sintered bushings are porous precision components. Excessive press-fit force, improper housing size, or rough handling can distort the bushing and reduce internal clearance. Correct housing tolerance and installation tools help maintain dimensional accuracy. After installation, the inner diameter should be checked if the application requires tight clearance control.

Quality Systems and Reliability

Reliability begins with design but depends on production discipline. ISO 9001:2015 certification demonstrates a structured quality management system, while IATF 16949:2016 certification reflects automotive-level process requirements. These systems encourage documented procedures, risk management, corrective action, traceability, supplier control, and continuous improvement. For customers, this means better confidence that products will meet agreed specifications consistently.

In powder metallurgy, quality variation can arise from powder batch changes, mixing inconsistency, tool wear, compaction pressure drift, furnace atmosphere variation, temperature fluctuation, sizing tool condition, or oil impregnation differences. A strong quality system identifies and controls these variables. The result is more stable density, porosity, hardness, dimensions, and lubrication performance.

Testing and inspection are not only final checks; they are feedback tools for process improvement. If measurement data shows trends, engineers can adjust process parameters before parts fall outside specification. This preventive approach supports stable long-term manufacturing. For high performance bushings, such stability is critical because small differences in porosity or oil content may affect friction behavior and service life.

Environmental and Economic Benefits

High performance sintered self-lubricating bushings offer environmental and economic advantages. Reduced external lubrication can lower oil and grease consumption. Cleaner lubrication behavior may reduce contamination around machinery. Longer service life can reduce replacement frequency, spare parts consumption, and maintenance-related waste. Near-net-shape manufacturing reduces material waste compared with machining from solid bar stock.

From an economic perspective, the value of a bushing should not be judged only by purchase price. Total cost includes installation time, maintenance labor, lubrication cost, downtime, replacement frequency, equipment damage, and production loss. A high-quality self-lubricating bushing may provide significant savings by reducing unplanned maintenance and extending operating intervals.

For OEM customers, stable bushing performance can also improve the reputation of the final equipment. A machine that runs quietly, requires less maintenance, and avoids premature bearing failures offers better value to end users. This makes component selection an important part of product competitiveness.

Engineering Support and OEM/ODM Customization

OEM and ODM customization is especially important for customers whose applications cannot be fully served by standard bushings. Jiande Welfine Technology Co., Ltd. can provide customized bushing solutions based on customer drawings or samples. The customization process may begin with reviewing operating conditions, target dimensions, expected load, movement type, shaft material, temperature range, and maintenance expectations.

After understanding these requirements, engineers can recommend suitable material systems, density targets, lubricant options, tolerance levels, and post-processing methods. For example, a high-load low-speed pivot may require a strong iron-copper matrix and solid lubricant support. A moderate-load high-speed rotating shaft may require optimized oil impregnation and surface finish. A dusty agricultural mechanism may require a design that reduces external grease exposure.

Prototype production and sample evaluation may be used before mass production. Samples can be tested for fit, friction, wear, noise, and durability in the customer’s assembly. Feedback from testing can guide design refinement. Once the design is confirmed, controlled production processes support repeatable batch manufacturing.

This engineering-oriented approach gives customers a practical advantage. Instead of purchasing a generic component and adapting the machine around it, customers can obtain a bushing designed to match the application. This can improve performance, reduce field problems, and support long-term supply cooperation.

Q&A Section

What makes a sintered self-lubricating bushing different from a conventional bushing?

A sintered self-lubricating bushing is produced using powder metallurgy, creating a controlled porous metal structure. These pores can store lubricating oil or work together with solid lubricants. During operation, lubricant is released to the contact surface, reducing friction and wear. A conventional machined bushing is usually made from solid material and often depends more heavily on external oil or grease.

Why is this type of bushing suitable for high load applications?

High performance sintered bushings can be designed with optimized density, iron-copper alloy composition, and controlled sintering quality. This gives them strong compressive strength and stable load-bearing capability. At the same time, their porous structure maintains lubrication, helping reduce friction under heavy load.

How does self-lubrication extend service life?

Self-lubrication reduces direct contact between the shaft and bushing. The oil stored inside the bushing moves toward the working surface during operation and forms a lubricating film. This film reduces adhesive wear, lowers frictional heat, and helps prevent seizure. As a result, the bushing can maintain performance for a longer period in suitable operating conditions.

Can these bushings operate without additional oil?

In many applications, oil-impregnated sintered bushings can operate with little or no frequent external lubrication. However, the exact requirement depends on load, speed, temperature, duty cycle, and environment. Some severe applications may still benefit from supplemental lubrication or special lubricant selection.

What materials are commonly used for high performance sintered bushings?

Common materials include iron-based alloys, copper-based alloys, and iron-copper sintered alloys. For high load conditions, Fe-Cu alloy structures are often selected because they provide a strong balance of mechanical strength, wear resistance, and lubrication capacity. Solid lubricants such as graphite and molybdenum disulfide may be added for improved friction control.

What are the main applications?

Typical applications include industrial machinery, automotive components, agricultural equipment, construction machinery, power transmission systems, hydraulic systems, mining machinery, material handling systems, and high-temperature equipment. They are especially useful where high load, limited maintenance, compact design, and stable friction are required.

How does powder metallurgy improve production efficiency?

Powder metallurgy forms parts close to final shape, reducing machining time and material waste. It also allows precise control of density, porosity, and composition. This makes it suitable for mass production of consistent bushings as well as customized components with special geometry or performance requirements.

Why are ISO 9001:2015 and IATF 16949:2016 certifications important?

These certifications show that the manufacturer follows structured quality management and process control systems. ISO 9001:2015 supports general quality consistency, while IATF 16949:2016 is especially important for automotive-related production. They help customers gain confidence in traceability, repeatability, corrective action, and continuous improvement.

Can custom bushings be produced from drawings or samples?

Yes. Jiande Welfine Technology Co., Ltd. provides OEM and ODM customized bushing solutions based on customer drawings or samples. Customization may include material, dimensions, density, porosity, lubricant type, oil grooves, flange design, tolerances, and surface finishing.

What should engineers consider before selecting a sintered bushing?

Engineers should consider load, speed, motion type, temperature, shaft hardness, shaft surface finish, alignment, installation method, contamination, lubricant requirements, and expected service life. Providing complete working condition information helps the manufacturer recommend the most suitable bushing design.

Conclusion

High performance sintered self-lubricating bushings provide a strong, efficient, and low-maintenance solution for demanding motion systems. Their value comes from the combination of powder metallurgy structure, controlled porosity, internal lubrication, high load capacity, wear resistance, and customizable material design. In applications where conventional bushings may suffer from lubrication failure, high friction, or frequent maintenance, sintered self-lubricating bushings offer a reliable alternative.

The product is especially suitable for high-load, high-speed, high-temperature, reciprocating, rotating, and oscillating applications. Its self-lubricating behavior helps reduce dry friction during start-up, stabilize operating temperature, reduce wear, and extend service life. Optional solid lubricants such as graphite and molybdenum disulfide can further improve performance under severe boundary lubrication conditions.

Jiande Welfine Technology Co., Ltd. strengthens the product’s competitiveness through advanced manufacturing processes, modern production equipment, experienced technical personnel, certified quality systems, and OEM/ODM customization capability. With a 13,039-square-meter production base, more than 20 years of powder metallurgy experience, and over 150 skilled employees, the company is positioned to support customers seeking reliable sintered metal parts, self-lubricating sintered bushings, and precision sintered components.

For machinery manufacturers and industrial users, selecting the right bushing is a strategic decision. A high-quality sintered self-lubricating bushing can reduce maintenance, improve equipment uptime, lower friction-related losses, and support long-term operating reliability. When supported by strong engineering and manufacturing capability, it becomes more than a bearing component; it becomes a dependable part of the entire motion system.

References

1. German, R. M. Powder Metallurgy and Particulate Materials Processing. Metal Powder Industries Federation.

2. ASM International. ASM Handbook, Volume 7: Powder Metal Technologies and Applications.

3. Schatt, W., Wieters, K. P., and Kieback, B. Powder Metallurgy: Processing and Materials. European Powder Metallurgy Association.

4. Bhushan, B. Introduction to Tribology. John Wiley & Sons.

5. Stachowiak, G. W., and Batchelor, A. W. Engineering Tribology. Butterworth-Heinemann.

6. Metal Powder Industries Federation. Standard Test Methods for Metal Powders and Powder Metallurgy Products.

7. ISO 9001:2015. Quality Management Systems Requirements.

8. IATF 16949:2016. Quality Management System Requirements for Automotive Production and Relevant Service Parts Organizations.
